7063 - Radiant 2023.1 and SEDC: How to use SEDC properly with reveal?
Description:
When observed at Reveal for CrossLink-NX using SoftJTAG, a timing error occurs.
Solution:

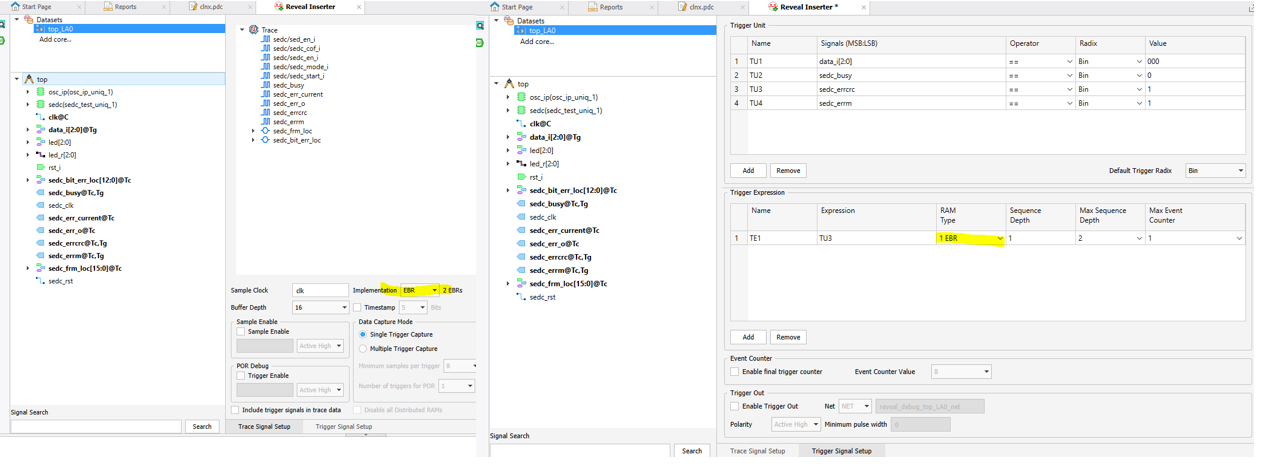

When using reveal with SEDC make sure that no distributed RAM is used for both Trace Signal Setup and Trigger Signal Setup like below:
