6924 - SerDes/PCS for ECP5/ECP5-5G: Why is TX-to-RX Serial Loopback not available in SerDes/PCS?
The loopback mode is not a static setting, but rather is dynamically controlled through the SCI Interface using the SerDes Control Register 6 (CH_15) > lb_ctl[3:0].

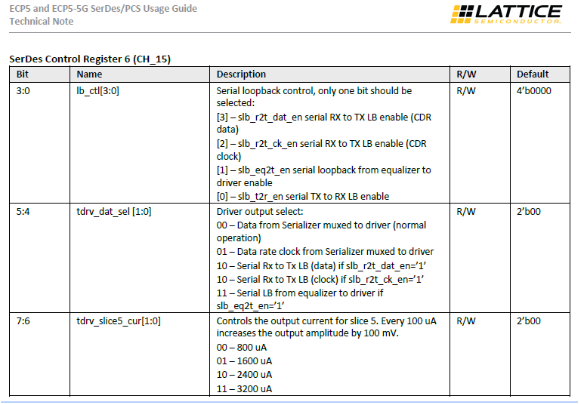

Please refer to Appendix A. Configuration Registers > Per Channel SerDes Control Register Details > SerDes Control Register 6 (CH_15) of FPGA-TN-02206:
