Lattice Nexus devices using Reveal: no output from LVDS IP
Description:
While debugging your Radiant design using Reveal, users may observe that there is no output from their LVDS IP.
Solution:
When Reveal is inserted in Nexus devices, on certain designs, the GSR net gets assigned to a reset signal that may behave incorrectly. Hence causing Reveal and possibly other circuits not to function properly.

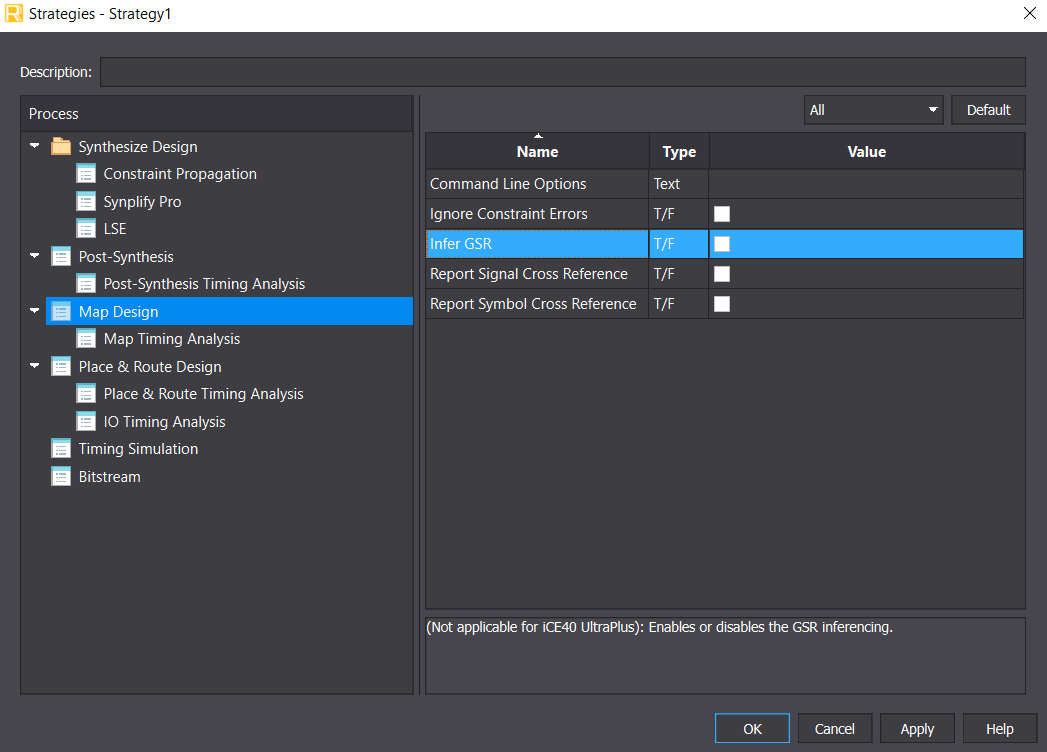

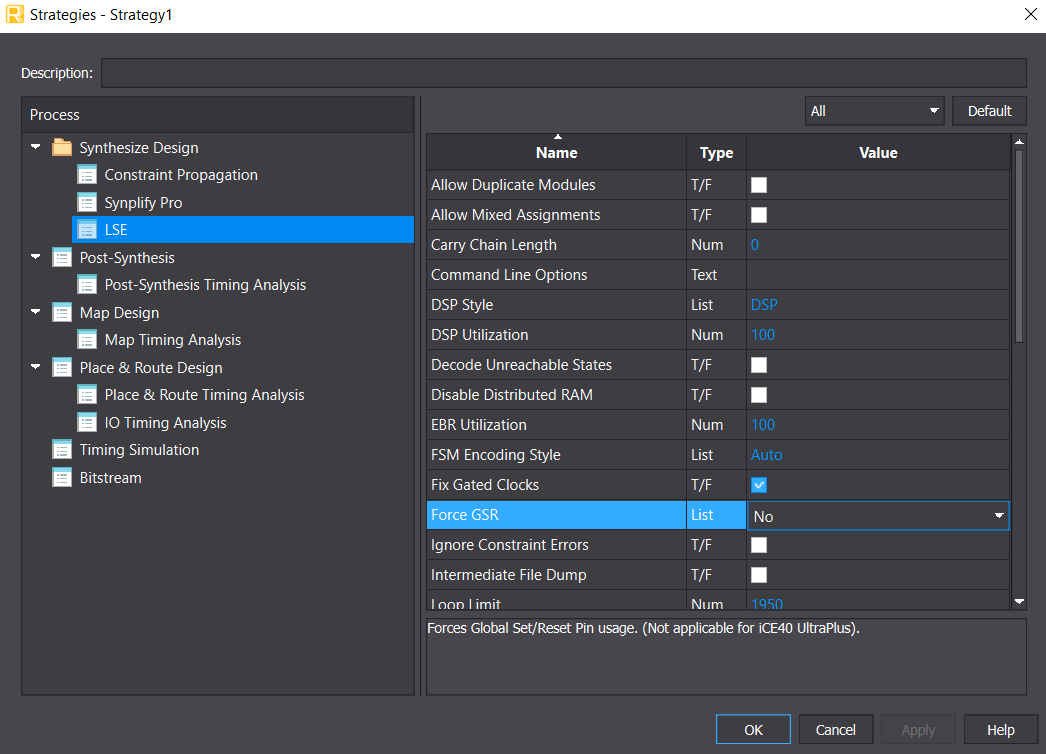

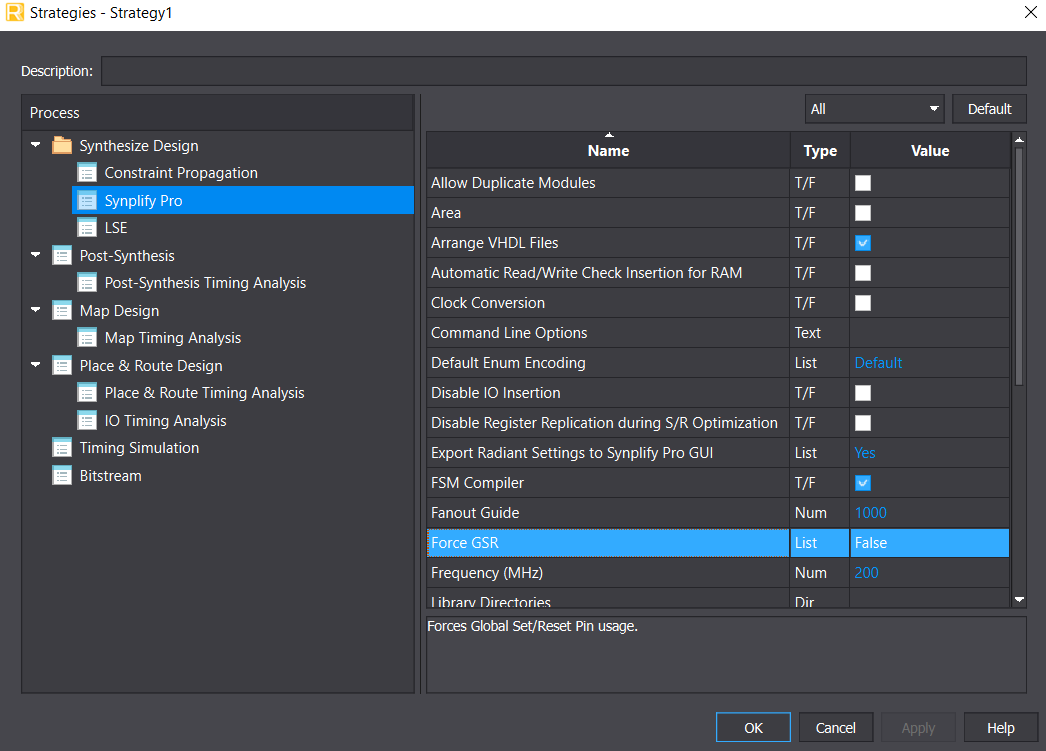

To resolve this, please disable the GSR option in the Strategy Settings:
