7331 - Diamond/Radiant: How to disable GSR in Lattice Diamond/Radiant?

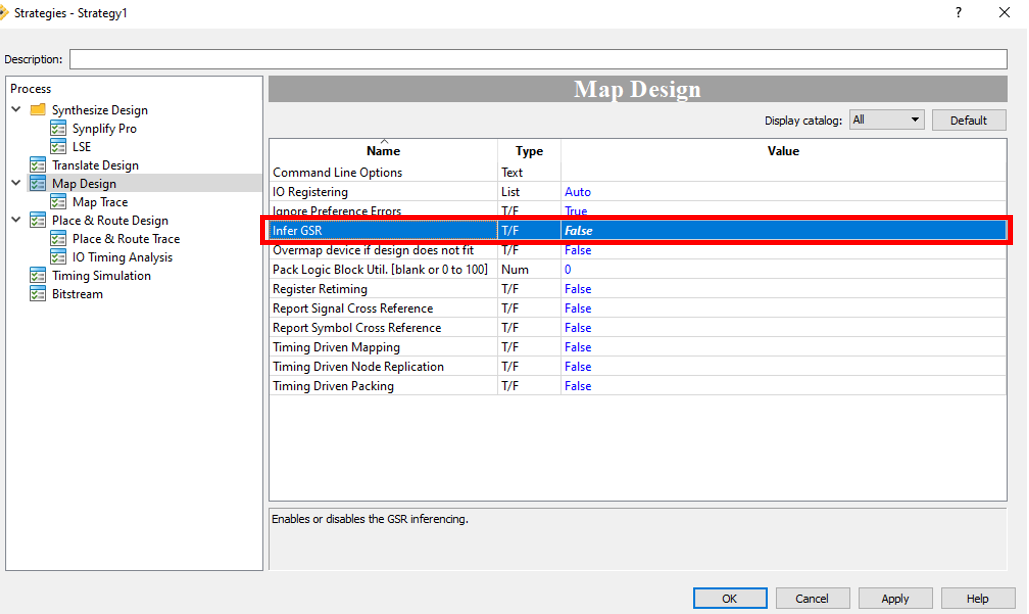

To fully disable GSR in Lattice Diamond and Radiant:

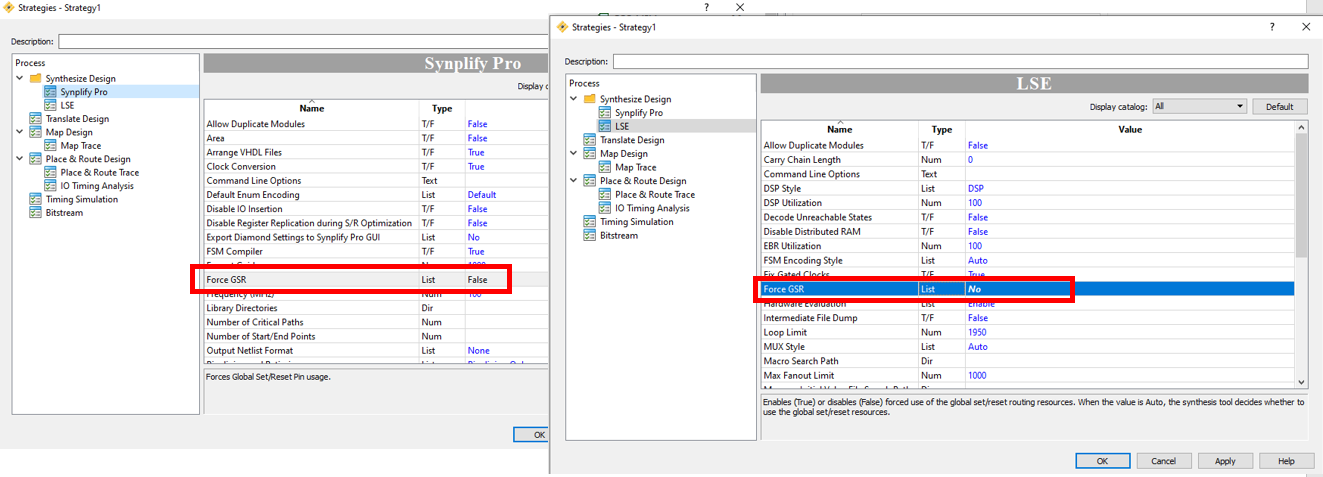

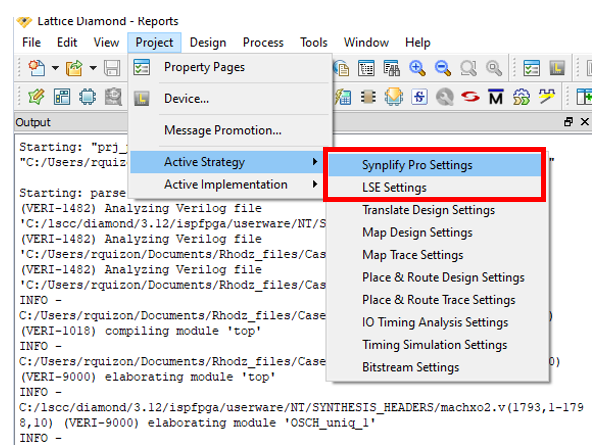

1. Project=>Active Strategy=>Synplify Pro settings/LSE Settings(depending on the synthesizer you are using):
