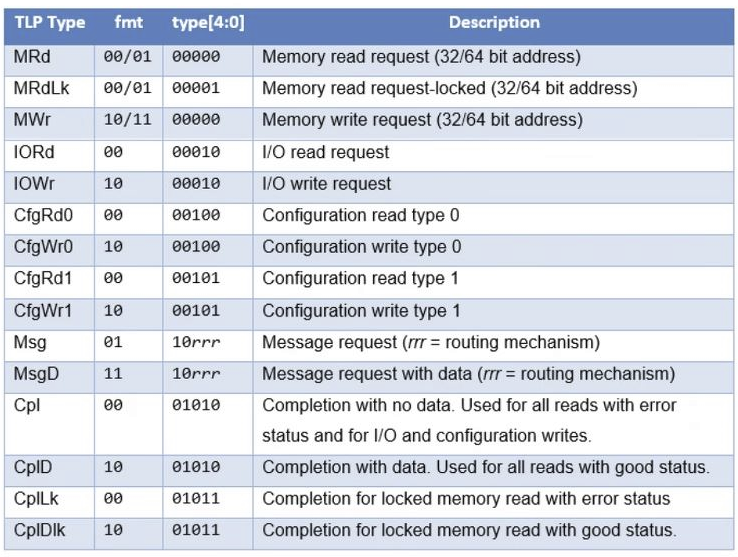

6923 - PCIe for Nexus FPGAs: Which TLP types from the provided table are not supported by the macro/IP?
All is supported except for the locked requests.
Related Articles
6900 - PCIe for Nexus FPGAs: How can the PCIe configuration space settings in the RTL of the demo be interpreted?
Description: To understand the RTL formatting of the PCIe configuration space in the Nexus' PCIe demos, please refer to the following details. Figure 1 illustrates the initialization of the PCIe configuration space in the Nexus' demo. Figure 1: ...7002 - PCIe for Nexus FPGAs: Where to download the PCIe Demo driver source code for Linux and Windows?
Description: The PCIe demo driver source code for Linux and Windows can be downloaded from below link: Scroll down the page and choose the appropriate PCIe Demo designs from the list. ...6961 - PCIe for Nexus FPGAs: Does PCIe IP supports full PCIe X1 component/block and configuration via LMMI (without using GUI)?
Description: There are some parameters that cannot be configured using LMMI. Example, in these 2 parameters: a) Target Link Speed – this is possible. The LMMI write needs to happen before PHY out of reset b) Use TLP Interface – this is not possible ...DisplayPort TX IP Version 2.1.0 does not support back-to-back video input without blanking interval
Description DisplayPort TX IP version 2.1.0 requires the video input to provide blanking interval between active horizontal video lines to ensure correct video data packing. Failure symptoms include no video image output or black screen, even though ...6250 - PCIe for Nexus FPGAs: In PCIe X4 IP Core, I have selected AHB_LITE as the Data Interface Type. What is the clock domain for this interface?
clk_usr_o originates from the PCIe Core, bypassing the PCIe Soft IP. It serves as an output to an external pin. Additionally, there are two input clocks for the Soft IP: clk_usr_i at 250 MHz and clk_usr_div2_i at 125 MHz.
