6535 - All Nexus/MPCS: How to solve the mismatch in received data under MPCS EPCS-bypassed mode?
Description:

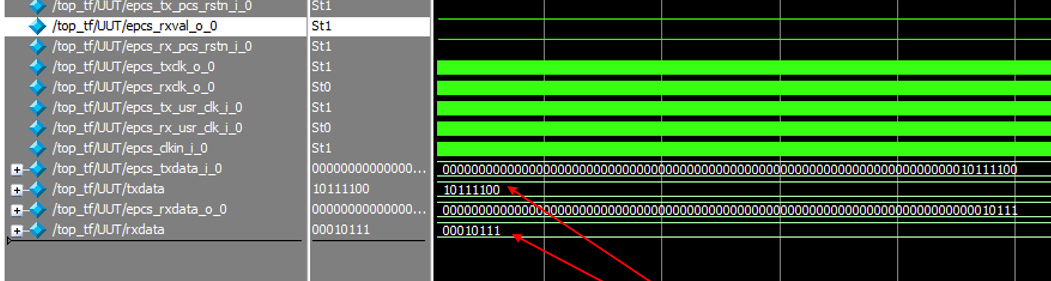

The issue may be due to misaligned data.
It should be noted that EPCS-bypassed mode does not have any word alignment capability.

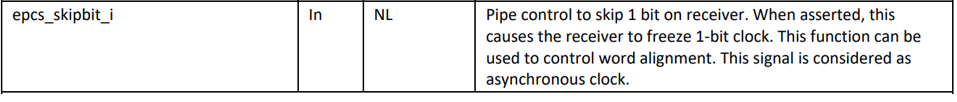

However, there is a workaround by using epcs_skipbit_i input signal to correct the data alignment at the receiving end.
