3997 - [LatticeECP3] [PCIe IP]: Why does the Peripheral Component Interconnect (PCIe) Scatter Gather Direct Memory Access (SGDMA) demo design of LatticeECP3 Versa development kit throw an error when compiled with the standalone Synplify Pro?

Description: When the PCIe SGDMA demo design files are compiled in Synplify Pro, the Synplify Pro compiler considers the variable 'int' to be a System Verilog data type.

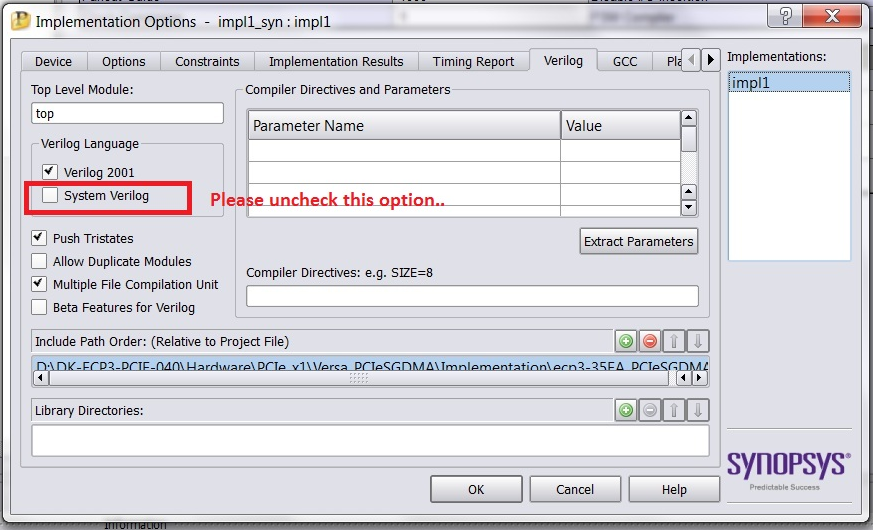

Solution: This default setting of Synplify Pro is the reason for the error. This default setting can be disabled by going to "Implementation Options" and unchecking the System Verilog option.

Related Articles
2069 - LatticeECP3: What is the usage of WB_CTI_I signal in the Lattice PCI Express Scatter Gather DMA Demo design?
WB_CTI_I is a Wishbone user defined signal for tagging the cycle as a single or burst access. In the Lattice PCI Express Scatter Gather DMA Demo design, the signal is driven by the SGDMA IP (Wishbone master). It is sourced by the EBR module (Wishbone ...
3646 - LatticeECP3: Where can I find documentation on the Windows drivers for PCIe Demos that are available for Lattice ECP3 Versa Development Kit?
Description: For details about PCIe drivers for Lattice ECP3 Versa Development Kit, refer to the PCIeDocIndex.html file that is available in the following path of ECP3 Versa Development Kit PCIe installation: DK-ECP3-PCIE-040\Software This file ...
3515 - PCIe of LatticeECP3: How many MSI (Message Signaled Interrupt) interrupts can be implemented using Lattice PCIe (Peripheral Component Interconnect Express) Endpoint IP core?
The Peripheral Component Interconnect Express (PCIe) endpoint IP we have currently can support only up to 8 Message Interconnect Express (MSI) interrupts. This number of MSI interrupts available for the user can be checked in 'Multiple Message ...
3606 - LatticeECP3: Can we change the DEVSEL parameter to SLOW for the PCIe IP (Peripheral Component Interconnect Express) configuration space?
No, the PCIe (Peripheral Component Interconnect Express) base specification clearly says that the DEVSEL TIMING parameter does not apply to PCIe Express Configuration space and is hardwired 0 by default. This means the DEVSEL TIMING parameter is ...
4012 - [Lattice ECP3] PCI Express Endpoint Core IP: How does the Lattice PCIe (Peripheral Component Interconnect Express) IP core issue multiple MSI (Message Signaled Interrupts) when multiple MSI request bits are set in the end application?
Description: The Lattice PCIe (Peripheral Component Interconnect Express) IP (Intellectual Property) core asserts all MSI one after the other. The Lattice PCIe (Peripheral Component Interconnect Express) IP (Intellectual Property) can handle up to 8 ...
