7266 - MachXO2/MachXO3:How to reset device ID when it was accidentally changed during programming?
Description:
When using external programmer, it can sometimes cause an issue that the device ID is accidentally changed due to sending of wrong bits.
Solution:

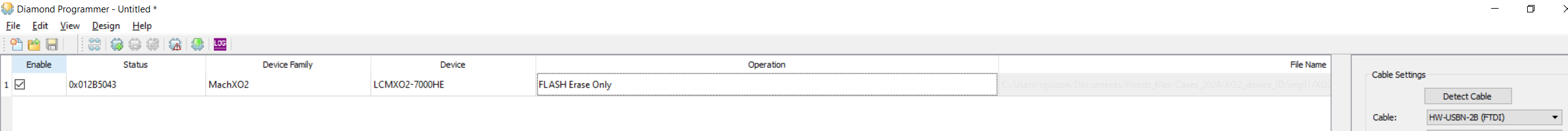

To reset the device ID. Select the flash erase mode at the programmer:

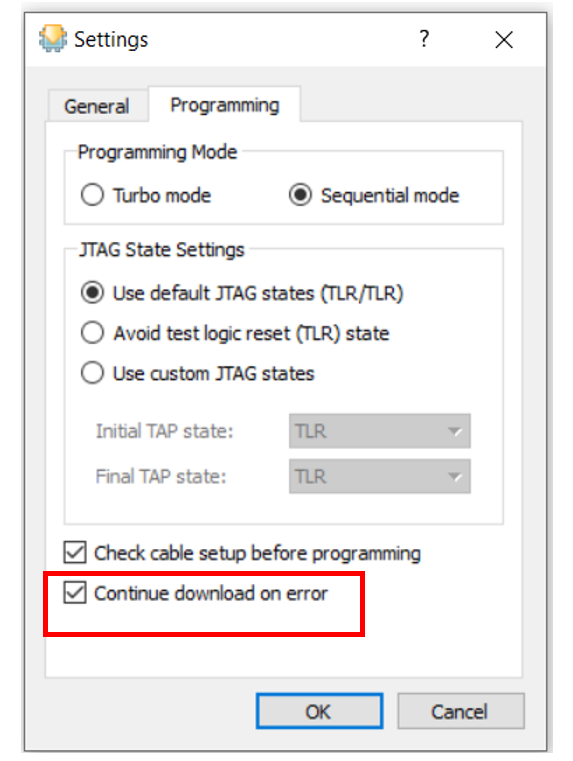

Then check "Continue download on error" under "Edit" menu, choose "settings" then go to "Programming" Tab

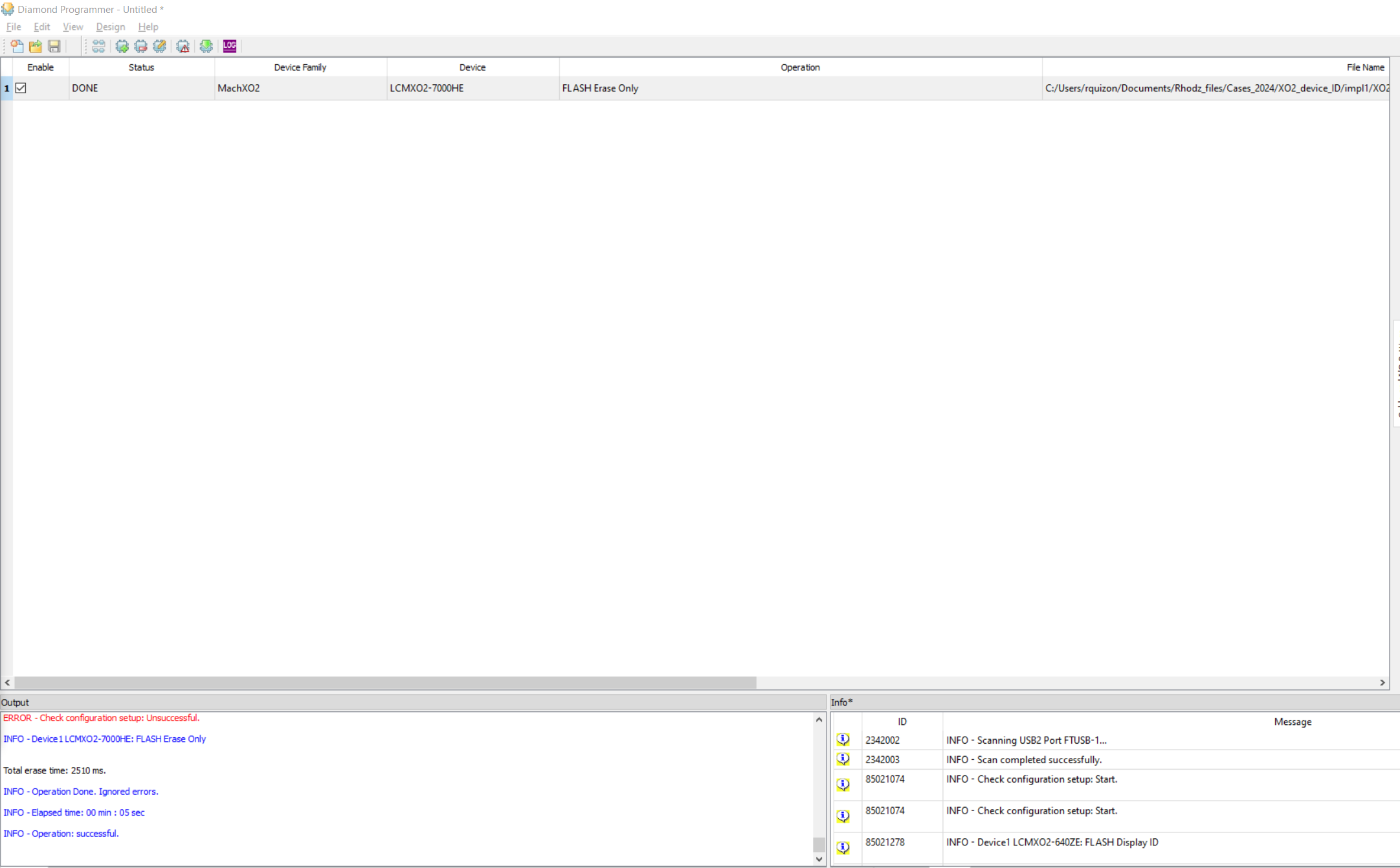

After that, press program to start erasing.

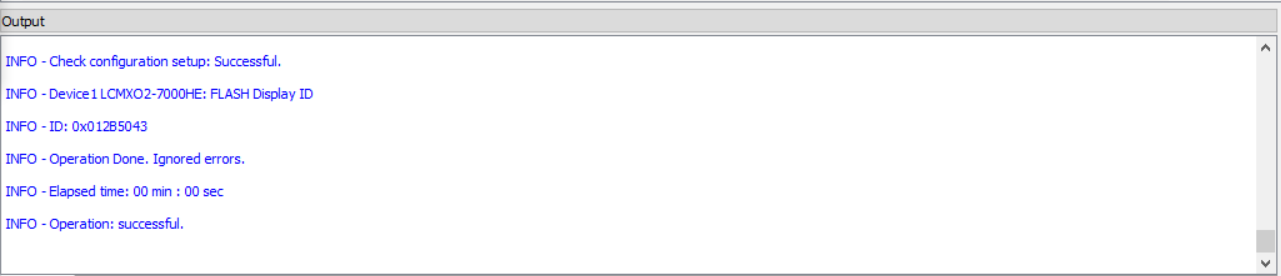

Checking device ID, it will now return to the default. See below:
