7005 - Propel: How to bring up serial UART terminal for Propel RiscV project with MachXO5™-NX Development Kit?
Description:
This bring up guideline is based on Propel Builder default hello world template.
Hardware setup pre-requisites

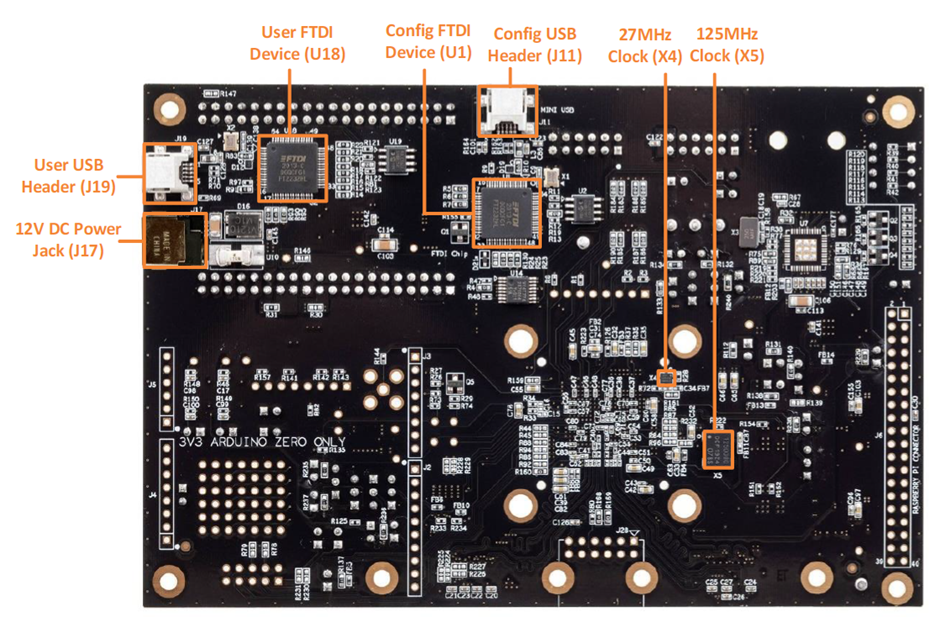

1. Power up the development kit with USB header (J19) instead of 12V power.

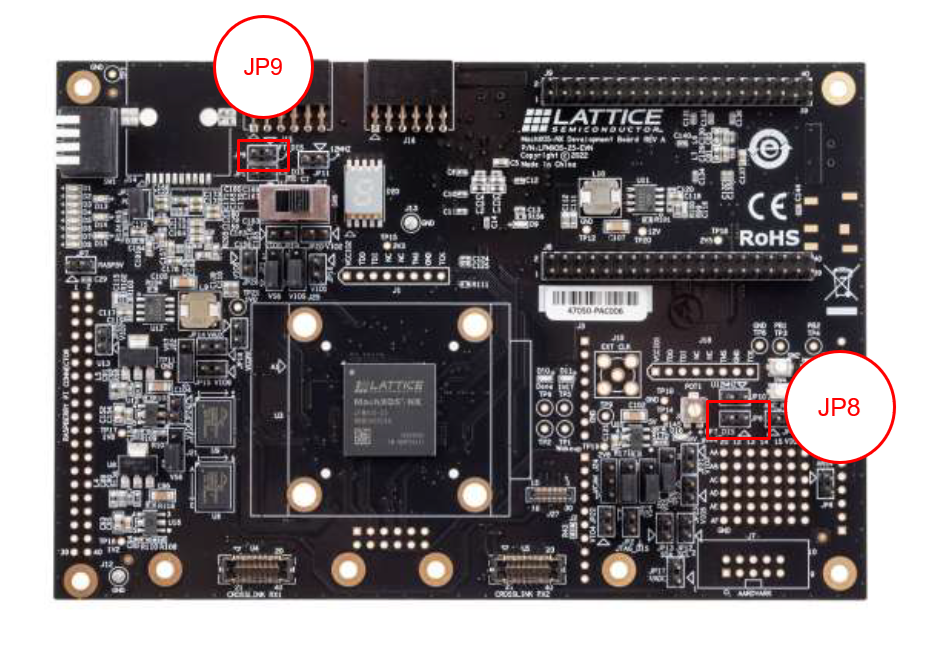

2. Removed JP8 and JP9 reset jumper to enable USB FTDI for both User USB header and Config USB header.
Radiant project device pin constraint
Please refer to: MachXO5-NX Development Board Evaluation Board User Guide (FPGA-EB-02052-1.1) Appendix C. User Defined Preference File Listing.
Port Name | Pin |
rstn_i | F20 |
rxd_i | B11 |
txd_o | B12 |
led_o[0] | R3 |
led_o[1] | R2 |
led_o[2] | R1 |
led_o[3] | P7 |
led_o[4] | H12 |
led_o[5] | H11 |
led_o[6] | G13 |
led_o[7] | G12 |
Solution:
Bring up steps
1. Connect mini-USB cable to JTAG/USB (J11).
2. Connect mini-USB cable to UART/USB (J19).

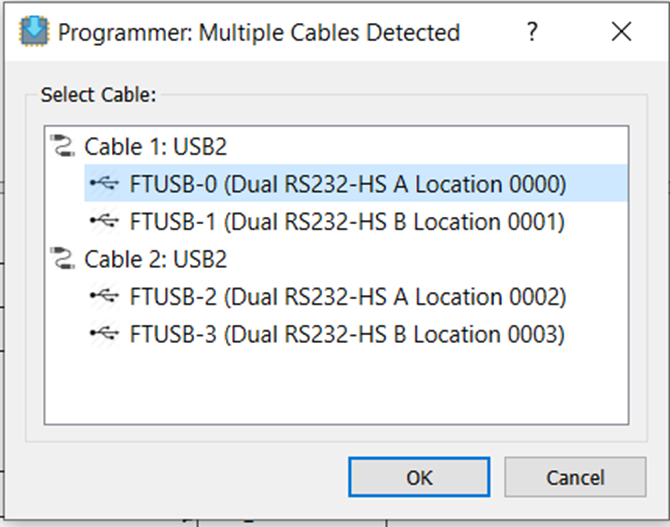

3. You should detect two USB cables.
1) Cable 1: FTUSB-0 is for JTAG bitstream configuration
2) Cable 2 is mainly use for UART COM ports

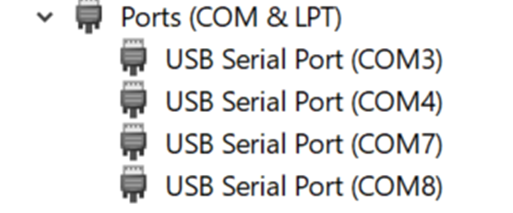

4. You should also make sure Device Manager able to detect four COM ports.
1) You may remove UART cable (J19) to check which COM port is for meant for UART terminal.
5. Connect and configure a serial terminal in Propel SDK before running the debug session.

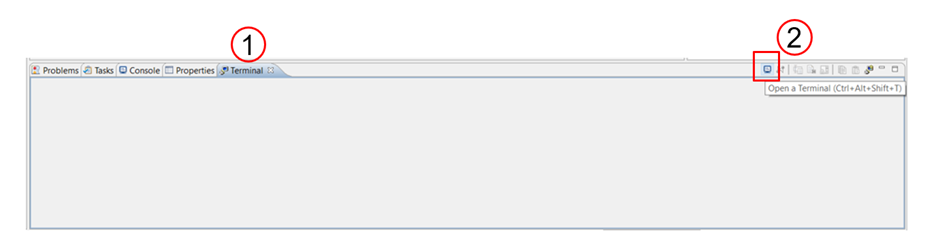

1) Select Terminal TAB.
2) Click on Terminal icon to Open the Terminal.

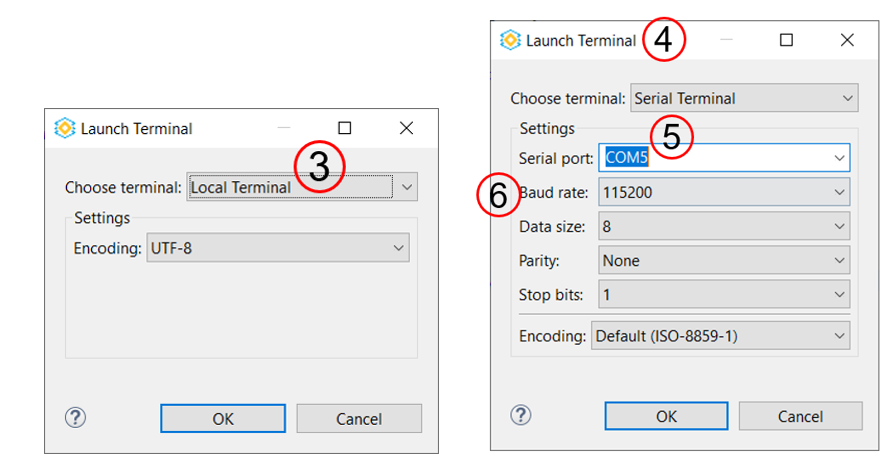

3) Choose Serial Terminal in Launch Terminal popup window.
4) Now Launch Terminal provides new setting entries of Serial Terminal.
5) Select the correct UART COM port.
6) Set BAUD RATE = 115200.
7) Click OK.

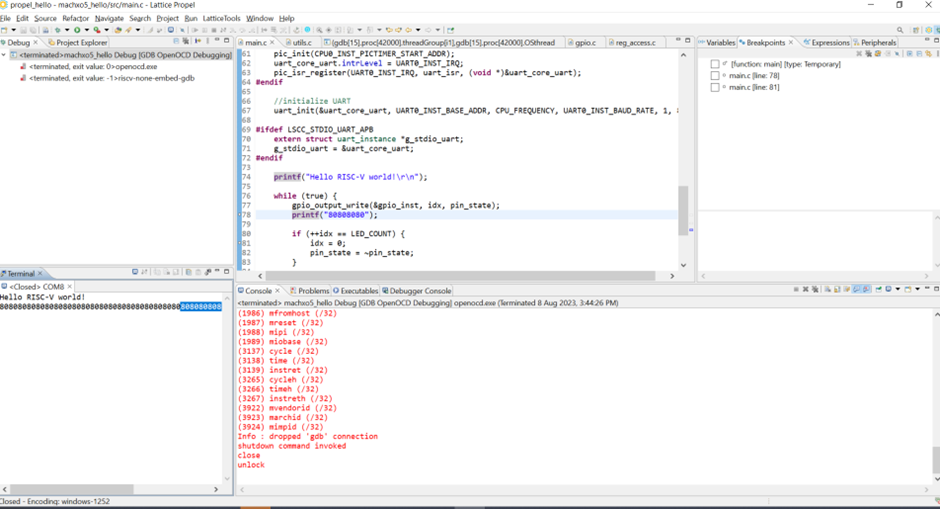

8) You should be able to successfully run OpenOCD debugger, with printout in Terminal after this.
