7268 - Propel: What is the workaround for the OpenOCD Debugger Error - Err: can not found the device from device family database, use default value to access this device?

7268 - Propel: What is the workaround for the OpenOCD Debugger Error - Err: can not found the device from device family database, use default value to access this device?

Description:
When you perform an OpenOCD debug session with the MachXO3LF Evaluation Kit, you may encounter the error message below, where the debugger is unable to identify the device family from the database.

Device List:
LCMXO3LF-9400C:0x612BE043
Err: can not found the device from device family database, use default value to access this device

Solution:

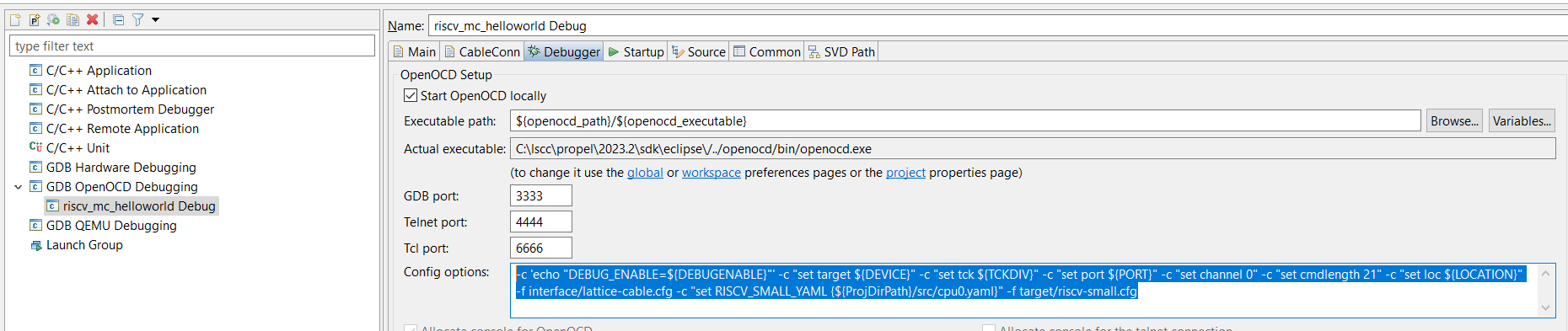

To workaround this issue, in your project debug configuration, set the hardcode "channel" and "cmdlength" values to 0 and 21 respectively.

-c 'echo "DEBUG_ENABLE=${DEBUGENABLE}"' -c "set target ${DEVICE}" -c "set tck ${TCKDIV}" -c "set port ${PORT}" -c "set channel 0" -c "set cmdlength 21" -c "set loc ${LOCATION}" -f interface/lattice-cable.cfg -c "set RISCV_SMALL_YAML {${ProjDirPath}/src/cpu0.yaml}" -f target/riscv-small.cfg
