6954 - All Nexus Families: How are the commands and bitstream sent in the Nexus device via Quad (x4) Slave SPI?
See below on how to send the commands in Quad (x4) SSPI mode in comparison to Standard(x1) SSPI mode
1.)

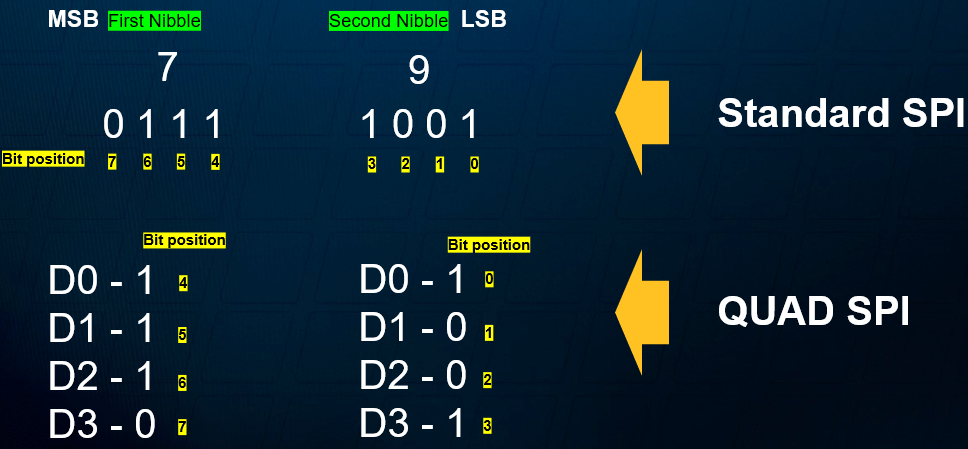

See below comparison on how the commands are sent using Standard Slave SPI vs. Quad Slave SPI.
In this example, the LSC_REFRESH (0x79) command was used.
* In Standard Slave SPI, the commands are sent by MSB first ([MSB:LSB] = [7:0]). The MSB Bit[7] is shifted in first.

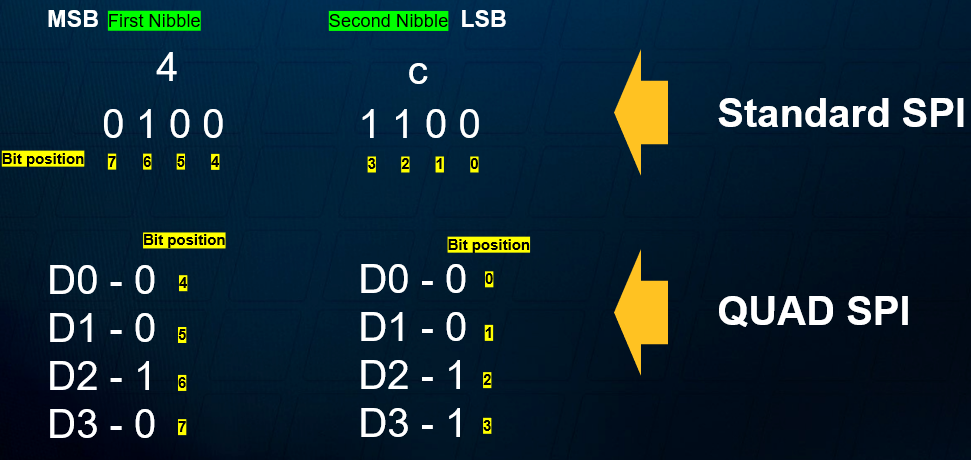

* In Quad Slave SPI, the user may refer to the below illustration.
