7064 - MachXO2: Why MachXO2 device internal flash (CFG/UFM) is not fully erase with typical tEraseCFG, tEraseUFM wait cycle when using Embedded Programming.
There is 2 methods to confidently ensure ERASE cycle is completed for MachXO2 with Embedded Programming.

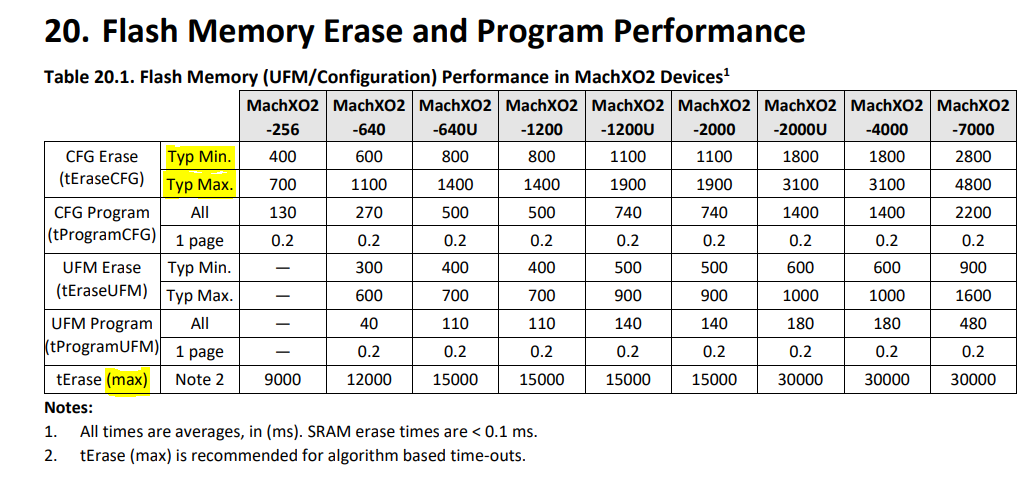

- Follow tErase(max) specification for Erase wait cycle. By following tErase(max) spec, user can ensure that the device will be fully erased.
- Alternately, user may poll the Busy bit in the status register to confirm the Erase is done.
- tErase (typ min/max) = normal distribution of the flash’s characteristics
- tErase(max) = absolute time to wait for the Erase to be complete
