Why did I receive a commercial part number when the order was an industrial part number (applicable for old dual-mark OPNs starting with LCXMXO, LFE2, LFE2M, LFEC, M4A3, M5A5 , LC4032 / LC4064 / LC4128 / LC4256 / LC4384 / LC4512, LFXP and LFSCM) ?
Some legacy Lattice silicon products utilize a “dual-mark” topside device mark strategy
that combines the commercial and industrial speed grades into a single format,
which is explained in the datasheet of the respective products. This dual-mark device
marking reflect two corresponding speed grades, with the commercial speed grade that is
always one speed grade faster (e.g. LCMXO2280C-4FTN324C) than the associated
industrial speed grade (e.g. LCMXO2280C-3FTN324I).
Both commercial and the alternate industrial ordering part numbers are sourced from the
same physical inventory which is the commercial product. Therefore, inner box labels
show the commercial part number as the primary product, with the alternate product printed
on the second line. This approach reduces inventory line items and simplifies the order
fulfillment process.
A dual-mark format example can be found on the next page. An actual top mark photo is
shown, with corresponding inner box label and datasheet ordering information for
reference.
The appendix table, on the other hand, specifies all part numbers that follow this dual-mark
strategy, including the following part numbers from different product families. The
commercial part numbers on the left side are basically the same as its alternate part
number on the right side of the table. This is explained in the respective datasheets of the
products.
• LCMXO2280C-5BN256C (same as its alternate part number LCMXO2280C-4BN256I)
• LFE2M100-6FN1152C (same as its alternate part number LFE2M100E-5FN1152I)
• LC4032C-75TN44C (same as its alternate part number LC4032C-10TN44I)
• LC4032ZE-4MN64C (same as its alternate part number LC4032ZE-5MN64I)

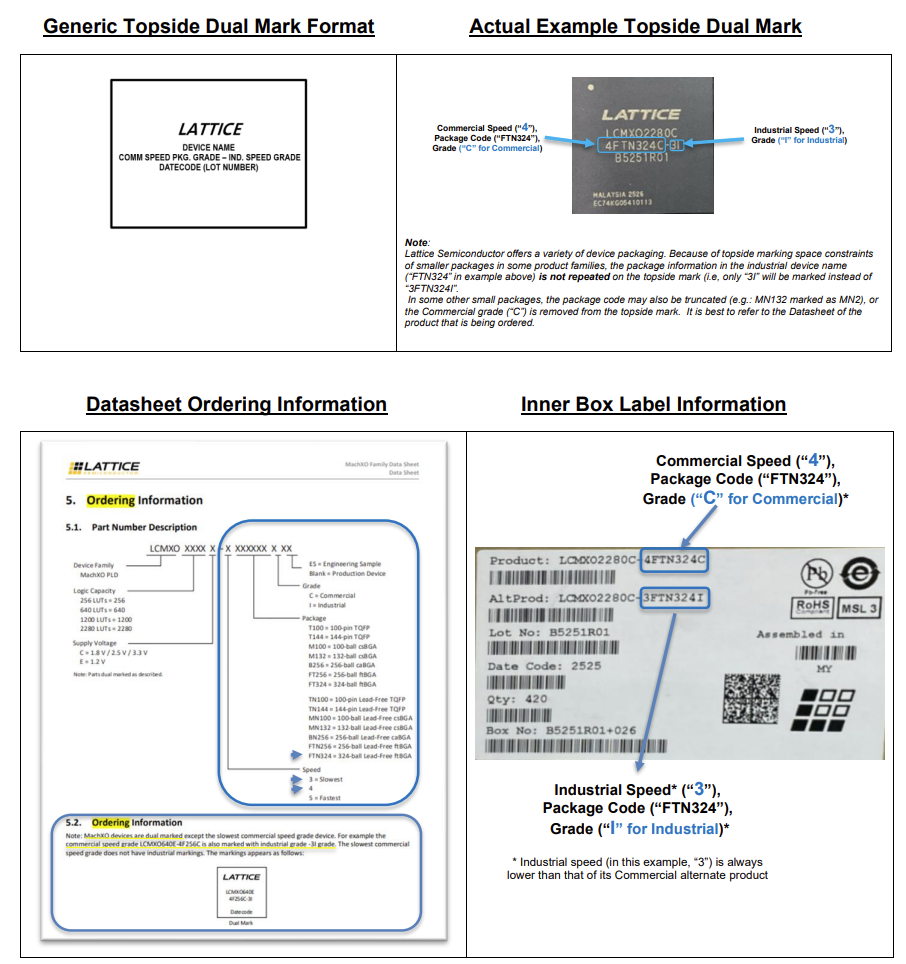

Dual Mark Device –
Samples of Top Mark, Inner Box Label and
Datasheet Ordering Information
(LCMXO2280C-4FTN324C vs. the alternate product LCMXO2280C-3FTN324I)
Appendix:
Lattice Legacy Devices with Dual Top Mark Strategy
Product Family Mach XO
Link to Datasheet MachXO Family Data Sheet
| Commercial OPN | Industrial OPN |
| LCMXO1200C-4BN256C | LCMXO1200C-3BN256I |
| LCMXO1200C-4FTN256C | LCMXO1200C-3FTN256I |
| LCMXO1200C-4MN132C | LCMXO1200C-3MN132I |
| LCMXO1200C-4TN100C | LCMXO1200C-3TN100I |
| LCMXO1200C-4TN144C | LCMXO1200C-3TN144I |
| LCMXO1200C-5BN256C | LCMXO1200C-4BN256I |
| LCMXO1200C-5FTN256C | LCMXO1200C-4FTN256I |
| LCMXO1200C-5MN132C | LCMXO1200C-4MN132I |
| LCMXO1200C-5TN100C | LCMXO1200C-4TN100I |
| LCMXO1200C-5TN144C | LCMXO1200C-4TN144I |
| LCMXO1200E-4BN256C | LCMXO1200E-3BN256I |
| LCMXO1200E-4FTN256C | LCMXO1200E-3FTN256I |
| LCMXO1200E-4MN132C | LCMXO1200E-3MN132I |
| LCMXO1200E-4TN100C | LCMXO1200E-3TN100I |
| LCMXO1200E-4TN144C | LCMXO1200E-3TN144I |
| LCMXO1200E-5BN256C | LCMXO1200E-4BN256I |
| LCMXO1200E-5FTN256C | LCMXO1200E-4FTN256I |
| LCMXO1200E-5MN132C | LCMXO1200E-4MN132I |
| LCMXO1200E-5TN100C | LCMXO1200E-4TN100I |
| LCMXO1200E-5TN144C | LCMXO1200E-4TN144I |
| LCMXO2280C-4BN256C | LCMXO2280C-3BN256I |
| LCMXO2280C-4FTN256C | LCMXO2280C-3FTN256I |
| LCMXO2280C-4FTN324C | LCMXO2280C-3FTN324I |
| LCMXO2280C-4MN132C | LCMXO2280C-3MN132I |
| LCMXO2280C-4TN100C | LCMXO2280C-3TN100I |
| LCMXO2280C-4TN144C | LCMXO2280C-3TN144I |
| LCMXO2280C-5BN256C | LCMXO2280C-4BN256I |
| LCMXO2280C-5FTN256C | LCMXO2280C-4FTN256I |
| LCMXO2280C-5FTN324C | LCMXO2280C-4FTN324I |
| LCMXO2280C-5MN132C | LCMXO2280C-4MN132I |
| LCMXO2280C-5TN100C | LCMXO2280C-4TN100I |
| LCMXO2280C-5TN144C | LCMXO2280C-4TN144I |
| LCMXO2280E-4BN256C | LCMXO2280E-3BN256I |
| LCMXO2280E-4FTN256C | LCMXO2280E-3FTN256I |
| LCMXO2280E-4FTN324C | LCMXO2280E-3FTN324I |
| LCMXO2280E-4MN132C | LCMXO2280E-3MN132I |
| LCMXO2280E-4TN100C | LCMXO2280E-3TN100I |
| LCMXO2280E-4TN144C | LCMXO2280E-3TN144I |
| LCMXO2280E-5BN256C | LCMXO2280E-4BN256I |
| LCMXO2280E-5FTN256C | LCMXO2280E-4FTN256I |
| LCMXO2280E-5FTN324C | LCMXO2280E-4FTN324I |
| LCMXO2280E-5MN132C | LCMXO2280E-4MN132I |
| LCMXO2280E-5TN100C | LCMXO2280E-4TN100I |
| LCMXO2280E-5TN144C | LCMXO2280E-4TN144I |
| LCMXO256C-4MN100C | LCMXO256C-3MN100I |
| LCMXO256C-4TN100C | LCMXO256C-3TN100I |
| LCMXO256C-5MN100C | LCMXO256C-4MN100I |
| LCMXO256C-5TN100C | LCMXO256C-4TN100I |
| LCMXO256E-4MN100C | LCMXO256E-3MN100I |
| LCMXO256E-4TN100C | LCMXO256E-3TN100I |
| LCMXO256E-5MN100C | LCMXO256E-4MN100I |
| LCMXO256E-5TN100C | LCMXO256E-4TN100I |
| LCMXO640C-4BN256C | LCMXO640C-3BN256I |
| LCMXO640C-4FTN256C | LCMXO640C-3FTN256I |
| LCMXO640C-4MN100C | LCMXO640C-3MN100I |
| LCMXO640C-4MN132C | LCMXO640C-3MN132I |
| LCMXO640C-4TN100C | LCMXO640C-3TN100I |
| LCMXO640C-4TN144C | LCMXO640C-3TN144I |
| LCMXO640C-5BN256C | LCMXO640C-4BN256I |
| LCMXO640C-5FTN256C | LCMXO640C-4FTN256I |
| LCMXO640C-5MN100C | LCMXO640C-4MN100I |
| LCMXO640C-5MN132C | LCMXO640C-4MN132I |
| LCMXO640C-5TN100C | LCMXO640C-4TN100I |
| LCMXO640C-5TN144C | LCMXO640C-4TN144I |
| LCMXO640E-4BN256C | LCMXO640E-3BN256I |
| LCMXO640E-4FTN256C | LCMXO640E-3FTN256I |
| LCMXO640E-4MN100C | LCMXO640E-3MN100I |
| LCMXO640E-4MN132C | LCMXO640E-3MN132I |
| LCMXO640E-4TN100C | LCMXO640E-3TN100I |
| LCMXO640E-4TN144C | LCMXO640E-3TN144I |
| LCMXO640E-5BN256C | LCMXO640E-4BN256I |
| LCMXO640E-5FTN256C | LCMXO640E-4FTN256I |
| LCMXO640E-5MN100C | LCMXO640E-4MN100I |
| LCMXO640E-5MN132C | LCMXO640E-4MN132I |
| LCMXO640E-5TN100C | LCMXO640E-4TN100I |
| LCMXO640E-5TN144C | LCMXO640E-4TN144I |
Product Family LatticeECP2 Family
Link to Datasheet LatticeECP2/M Family Data Sheet
| Commercial OPN | Industrial OPN |
| LFE2-12E-6FN256C | LFE2-12E-5FN256I |
| LFE2-12E-6FN484C | LFE2-12E-5FN484I |
| LFE2-12E-6QN208C | LFE2-12E-5QN208I |
| LFE2-12E-6TN144C | LFE2-12E-5TN144I |
| LFE2-12E-7FN256C | LFE2-12E-6FN256I |
| LFE2-12E-7FN484C | LFE2-12E-6FN484I |
| LFE2-12E-7QN208C | LFE2-12E-6QN208I |
| LFE2-12E-7TN144C | LFE2-12E-6TN144I |
| LFE2-12SE-6FN256C | LFE2-12SE-5FN256I |
| LFE2-12SE-6FN484C | LFE2-12SE-5FN484I |
| LFE2-12SE-6QN208C | LFE2-12SE-5QN208I |
| LFE2-12SE-6TN144C | LFE2-12SE-5TN144I |
| LFE2-12SE-7FN256C | LFE2-12SE-6FN256I |
| LFE2-12SE-7FN484C | LFE2-12SE-6FN484I |
| LFE2-12SE-7QN208C | LFE2-12SE-6QN208I |
| LFE2-12SE-7TN144C | LFE2-12SE-6TN144I |
| LFE2-20E-6FN256C | LFE2-20E-5FN256I |
| LFE2-20E-6FN484C | LFE2-20E-5FN484I |
| LFE2-20E-6FN672C | LFE2-20E-5FN672I |
| LFE2-20E-6QN208C | LFE2-20E-5QN208I |
| LFE2-20E-7FN256C | LFE2-20E-6FN256I |
| LFE2-20E-7FN484C | LFE2-20E-6FN484I |
| LFE2-20E-7FN672C | LFE2-20E-6FN672I |
| LFE2-20E-7QN208C | LFE2-20E-6QN208I |
| LFE2-20SE-6FN256C | LFE2-20SE-5FN256I |
| LFE2-20SE-6FN484C | LFE2-20SE-5FN484I |
| LFE2-20SE-6FN672C | LFE2-20SE-5FN672I |
| LFE2-20SE-6QN208C | LFE2-20SE-5QN208I |
| LFE2-20SE-7FN256C | LFE2-20SE-6FN256I |
| LFE2-20SE-7FN484C | LFE2-20SE-6FN484I |
| LFE2-20SE-7FN672C | LFE2-20SE-6FN672I |
| LFE2-20SE-7QN208C | LFE2-20SE-6QN208I |
| LFE2-35E-6FN484C | LFE2-35E-5FN484I |
| LFE2-35E-6FN672C | LFE2-35E-5FN672I |
| LFE2-35E-7FN484C | LFE2-35E-6FN484I |
| LFE2-35E-7FN672C | LFE2-35E-6FN672I |
| LFE2-35SE-6FN484C | LFE2-35SE-5FN484I |
| LFE2-35SE-6FN672C | LFE2-35SE-5FN672I |
| LFE2-35SE-7FN484C | LFE2-35SE-6FN484I |
| LFE2-35SE-7FN672C | LFE2-35SE-6FN672I |
| LFE2-50E-6FN484C | LFE2-50E-5FN484I |
| LFE2-50E-6FN672C | LFE2-50E-5FN672I |
| LFE2-50E-7FN484C | LFE2-50E-6FN484I |
| LFE2-50E-7FN672C | LFE2-50E-6FN672I |
| LFE2-50SE-6FN484C | LFE2-50SE-5FN484I |
| LFE2-50SE-6FN672C | LFE2-50SE-5FN672I |
| LFE2-50SE-7FN484C | LFE2-50SE-6FN484I |
| LFE2-50SE-7FN672C | LFE2-50SE-6FN672I |
| LFE2-6E-6FN256C | LFE2-6E-5FN256I |
| LFE2-6E-6TN144C | LFE2-6E-5TN144I |
| LFE2-6E-7FN256C | LFE2-6E-6FN256I |
| LFE2-6E-7TN144C | LFE2-6E-6TN144I |
| LFE2-6SE-6FN256C | LFE2-6SE-5FN256I |
| LFE2-6SE-6TN144C | LFE2-6SE-5TN144I |
| LFE2-6SE-7FN256C | LFE2-6SE-6FN256I |
| LFE2-6SE-7TN144C | LFE2-6SE-6TN144I |
| LFE2-70E-6FN672C | LFE2-70E-5FN672I |
| LFE2-70E-6FN900C | LFE2-70E-5FN900I |
| LFE2-70E-7FN672C | LFE2-70E-6FN672I |
| LFE2-70E-7FN900C | LFE2-70E-6FN900I |
| LFE2-70SE-6FN672C | LFE2-70SE-5FN672I |
| LFE2-70SE-6FN900C | LFE2-70SE-5FN900I |
| LFE2-70SE-7FN672C | LFE2-70SE-6FN672I |
| LFE2-70SE-7FN900C | LFE2-70SE-6FN900I |
Product Family LatticeECP2M Family
Link to Datasheet LatticeECP2/M Family Data Sheet
| Commercial OPN | Industrial OPN |
| LFE2M100E-6FN1152C | LFE2M100E-5FN1152I |
| LFE2M100E-6FN900C | LFE2M100E-5FN900I |
| LFE2M100E-7FN1152C | LFE2M100E-6FN1152I |
| LFE2M100E-7FN900C | LFE2M100E-6FN900I |
| LFE2M100SE-6FN1152C | LFE2M100SE-5FN1152I |
| LFE2M100SE-6FN900C | LFE2M100SE-5FN900I |
| LFE2M100SE-7FN1152C | LFE2M100SE-6FN1152I |
| LFE2M100SE-7FN900C | LFE2M100SE-6FN900I |
| LFE2M20E-6FN256C | LFE2M20E-5FN256I |
| LFE2M20E-6FN484C | LFE2M20E-5FN484I |
| LFE2M20E-7FN256C | LFE2M20E-6FN256I |
| LFE2M20E-7FN484C | LFE2M20E-6FN484I |
| LFE2M20SE-6FN256C | LFE2M20SE-5FN256I |
| LFE2M20SE-6FN484C | LFE2M20SE-5FN484I |
| LFE2M20SE-7FN256C | LFE2M20SE-6FN256I |
| LFE2M20SE-7FN484C | LFE2M20SE-6FN484I |
| LFE2M35E-6FN256C | LFE2M35E-5FN256I |
| LFE2M35E-6FN484C | LFE2M35E-5FN484I |
| LFE2M35E-6FN672C | LFE2M35E-5FN672I |
| LFE2M35E-7FN256C | LFE2M35E-6FN256I |
| LFE2M35E-7FN484C | LFE2M35E-6FN484I |
| LFE2M35E-7FN672C | LFE2M35E-6FN672I |
| LFE2M35SE-6FN256C | LFE2M35SE-5FN256I |
| LFE2M35SE-6FN484C | LFE2M35SE-5FN484I |
| LFE2M35SE-6FN672C | LFE2M35SE-5FN672I |
| LFE2M35SE-7FN256C | LFE2M35SE-6FN256I |
| LFE2M35SE-7FN484C | LFE2M35SE-6FN484I |
| LFE2M35SE-7FN672C | LFE2M35SE-6FN672I |
| LFE2M50E-6FN484C | LFE2M50E-5FN484I |
| LFE2M50E-6FN672C | LFE2M50E-5FN672I |
| LFE2M50E-6FN900C | LFE2M50E-5FN900I |
| LFE2M50E-7FN484C | LFE2M50E-6FN484I |
| LFE2M50E-7FN672C | LFE2M50E-6FN672I |
| LFE2M50E-7FN900C | LFE2M50E-6FN900I |
| LFE2M50SE-6FN484C | LFE2M50SE-5FN484I |
| LFE2M50SE-6FN672C | LFE2M50SE-5FN672I |
| LFE2M50SE-6FN900C | LFE2M50SE-5FN900I |
| LFE2M50SE-7FN484C | LFE2M50SE-6FN484I |
| LFE2M50SE-7FN672C | LFE2M50SE-6FN672I |
| LFE2M50SE-7FN900C | LFE2M50SE-6FN900I |
| LFE2M70E-6FN1152C | LFE2M70E-5FN1152I |
| LFE2M70E-6FN900C | LFE2M70E-5FN900I |
| LFE2M70E-7FN1152C | LFE2M70E-6FN1152I |
| LFE2M70E-7FN900C | LFE2M70E-6FN900I |
| LFE2M70SE-6FN1152C | LFE2M70SE-5FN1152I |
| LFE2M70SE-6FN900C | LFE2M70SE-5FN900I |
| LFE2M70SE-7FN1152C | LFE2M70SE-6FN1152I |
| LFE2M70SE-7FN900C | LFE2M70SE-6FN900I |
Product Family LatticeEC/ECP Families
Link to Datasheet LatticeECP/EC Family Data Sheet
| Commercial OPN | Industrial OPN |
| LFEC10E-4FN256C | LFEC10E-3FN256I |
| LFEC1E-4TN100C | LFEC1E-3TN100I |
| LFEC3E-4F256C | LFEC3E-3F256I |
| LFEC6E-4FN256C | LFEC6E-3FN256I |
Product Family ispMACH 4A, MACH 4 & MACH 5 Family
Link to Datasheet ispMACH 4A Data Sheet (vL)
| Commercial OPN | Industrial OPN |
| M4A3-32/32-5VNC48 | M4A3-32/32-7VNI48 |
| M4A3-32/32-5VNC | M4A3-32/32-7VNI |
| M4A3-32/32-7VNC48 | M4A3-32/32-10VNI48 |
| M4A3-32/32-7VNC | M4A3-32/32-10VNI |
| M4A3-32/32-10VNC48 | M4A3-32/32-12VNI48 |
| M4A3-32/32-10VNC | M4A3-32/32-12VNI |
| M4A3-64/32-7VNC48 | M4A3-64/32-10VNI48 |
| M4A3-64/32-7VNC | M4A3-64/32-10VNI |
| M4A3-64/32-10VNC48 | M4A3-64/32-12VNI48 |
| M4A3-64/32-10VNC | M4A3-64/32-12VNI |
| M4A3-64/32-55VNC48 | M4A3-64/32-7VNI48 |
| M4A3-64/32-55VNC | M4A3-64/32-7VNI |
| M4A3-64/32-55JNC | M4A3-64/32-7JNI |
| M4A3-64/64-7VNC | M4A3-64/64-10VNI |
| M4A3-64/64-10VNC | M4A3-64/64-12VNI |
| M4A3-64/64-55VNC | M4A3-64/64-7VNI |
| M4A3-96/48-10VNC | M4A3-96/48-12VNI |
| M4A3-128/64-7VNC | M4A3-128/64-10VNI |
| M4A3-128/64-10VNC | M4A3-128/64-12VNI |
| M4A3-128/64-55VNC | M4A3-128/64-7VNI |
| M4A3-192/96-6VNC | M4A3-192/96-7VNI |
| M4A3-192/96-7VNC | M4A3-192/96-10VNI |
| M4A3-192/96-10FANC | M4A3-192/96-12FANI |
| M4A3-192/96-10VNC | M4A3-192/96-12VNI |
| M4A3-256/128-7FANC | M4A3-256/128-10FANI |
| M4A3-256/128-7YNC | M4A3-256/128-10YNI |
| M4A3-256/128-10FANC | M4A3-256/128-12FANI |
| M4A3-256/128-10YNC | M4A3-256/128-12YNI |
| M4A3-256/128-55YNC | M4A3-256/128-7YNI |
| M4A3-256/160-7YNC | M4A3-256/160-10YNI |
| M4A3-256/160-10YNC | M4A3-256/160-12YNI |
| M4A3-256/192-7FANC | M4A3-256/192-10FANI |
| M4A3-256/192-10FANC | M4A3-256/192-12FANI |
| M4A3-384/192-10FANC | M4A3-384/192-12FANI |
| M4A3-384/192-12FANC | M4A3-384/192-14FANI |
| M4A3-384/192-65FANC | M4A3-384/192-10FANI |
| M4A3-512/192-7FANC | M4A3-512/192-10FANI |
| M4A3-512/192-10FANC | M4A3-512/192-12FANI |
| M4A3-512/192-12FANC | M4A3-512/192-14FANI |
| M4A5-32/32-5VNC48 | M4A5-32/32-7VNI48 |
| M4A5-32/32-5VNC | M4A5-32/32-7VNI |
| M4A5-32/32-7VNC48 | M4A5-32/32-10VNI48 |
| M4A5-32/32-7VNC | M4A5-32/32-10VNI |
| M4A5-32/32-10VNC48 | M4A5-32/32-12VNI48 |
| M4A5-32/32-10VNC | M4A5-32/32-12VNI |
| M4A5-64/32-7VNC48 | M4A5-64/32-10VNI48 |
| M4A5-64/32-7VNC | M4A5-64/32-10VNI |
| M4A5-64/32-10VNC48 | M4A5-64/32-12VNI48 |
| M4A5-64/32-10VNC | M4A5-64/32-12VNI |
| M4A5-64/32-55VNC48 | M4A5-64/32-7VNI48 |
| M4A5-64/32-55VNC | M4A5-64/32-7VNI |
| M4A5-64/32-7JNC | M4A5-64/32-10JNI |
| M4A5-64/32-55JNC | M4A5-64/32-7JNI |
| M4A5-96/48-7VNC | M4A5-96/48-10VNI |
| M4A5-96/48-10VNC | M4A5-96/48-12VNI |
| M4A5-96/48-55VNC | M4A5-96/48-7VNI |
| M4A5-128/64-7YNC | M4A5-128/64-10YNI |
| M4A5-128/64-7VNC | M4A5-128/64-10VNI |
| M4A5-128/64-10VNC | M4A5-128/64-12VNI |
| M4A5-128/64-55YNC | M4A5-128/64-7YNI |
| M4A5-128/64-55VNC | M4A5-128/64-7VNI |
| M4A5-128/64-10YNC | M4A5-128/64-12YNI |
| M4A5-192/96-6VNC | M4A5-192/96-7VNI |
| M4A5-192/96-7VNC | M4A5-192/96-10VNI |
| M4A5-192/96-10VNC | M4A5-192/96-12VNI |
| M4A5-256/128-7YNC | M4A5-256/128-10YNI |
| M4A5-256/128-10YNC | M4A5-256/128-12YNI |
Product Family ispMACH 4000V/B/C/Z Family
Link to Datasheet ispMACH 4000V/B/C/Z Family Data Sheet
| Commercial OPN | Industrial OPN |
| LC4032C-75TN44C | LC4032C-10TN44I |
| LC4032V-5TN44C | LC4032V-75TN44I |
| LC4032V-5TN48C | LC4032V-75TN48I |
| LC4032V-25TN44C | LC4032V-5TN44I |
| LC4032V-25TN48C | LC4032V-5TN48I |
| LC4032V-75TN44C | LC4032V-10TN44I |
| LC4032V-75TN48C | LC4032V-10TN48I |
| LC4032ZC-5MN56C | LC4032ZC-75MN56I |
| LC4032ZC-5TN48C | LC4032ZC-75TN48I |
| LC4032ZC-35M56C | LC4032ZC-5M56I |
| LC4032ZC-35MN56C | LC4032ZC-5MN56I |
| LC4032ZC-35TN48C | LC4032ZC-5TN48I |
| LC4064C-5TN48C | LC4064C-75TN48I |
| LC4064V-5TN100C | LC4064V-75TN100I |
| LC4064V-25TN100C | LC4064V-5TN100I |
| LC4064V-75TN100C | LC4064V-10TN100I |
| LC4064V-5TN44C | LC4064V-75TN44I |
| LC4064V-5TN48C | LC4064V-75TN48I |
| LC4064V-25TN44C | LC4064V-5TN44I |
| LC4064V-25TN48C | LC4064V-5TN48I |
| LC4064V-75TN44C | LC4064V-10TN44I |
| LC4064V-75TN48C | LC4064V-10TN48I |
| LC4064ZC-5MN132C | LC4064ZC-75MN132I |
| LC4064ZC-5MN56C | LC4064ZC-75MN56I |
| LC4064ZC-5TN100C | LC4064ZC-75TN100I |
| LC4064ZC-5TN48C | LC4064ZC-75TN48I |
| LC4064ZC-37MN132C | LC4064ZC-5MN132I |
| LC4064ZC-37MN56C | LC4064ZC-5MN56I |
| LC4064ZC-37TN100C | LC4064ZC-5TN100I |
| LC4064ZC-37TN48C | LC4064ZC-5TN48I |
| LC4128V-5TN128C | LC4128V-75TN128I |
| LC4128V-5TN100C | LC4128V-75TN100I |
| LC4128V-5TN144C | LC4128V-75TN144I |
| LC4128V-27TN128C | LC4128V-5TN128I |
| LC4128V-27TN100C | LC4128V-5TN100I |
| LC4128V-27TN144C | LC4128V-5TN144I |
| LC4128V-75TN128C | LC4128V-10TN128I |
| LC4128V-75TN100C | LC4128V-10TN100I |
| LC4128V-75TN144C | LC4128V-10TN144I |
| LC4128ZC-42MN132C | LC4128ZC-75MN132I |
| LC4128ZC-42TN100C | LC4128ZC-75TN100I |
| LC4256V-3FTN256BC | LC4256V-5FTN256BI |
| LC4256V-5FT256BC | LC4256V-75FT256BI |
| LC4256V-5FTN256BC | LC4256V-75FTN256BI |
| LC4256V-75FT256BC | LC4256V-10FT256BI |
| LC4256V-75FTN256BC | LC4256V-10FTN256BI |
| LC4256V-3TN100C | LC4256V-5TN100I |
| LC4256V-3TN144C | LC4256V-5TN144I |
| LC4256V-3TN176C | LC4256V-5TN176I |
| LC4256V-5TN100C | LC4256V-75TN100I |
| LC4256V-5TN144C | LC4256V-75TN144I |
| LC4256V-5TN176C | LC4256V-75TN176I |
| LC4256V-3FTN256AC | LC4256V-5FTN256AI |
| LC4256V-5FTN256AC | LC4256V-75FTN256AI |
| LC4256V-75FTN256AC | LC4256V-10FTN256AI |
| LC4256V-75TN100C | LC4256V-10TN100I |
| LC4256V-75TN144C | LC4256V-10TN144I |
| LC4256V-75TN176C | LC4256V-10TN176I |
| LC4256ZC-45MN132C | LC4256ZC-75MN132I |
| LC4256ZC-45TN100C | LC4256ZC-75TN100I |
| LC4256ZC-45TN176C | LC4256ZC-75TN176I |
| LC4384V-5TN176C | LC4384V-75TN176I |
| LC4384V-35FTN256C | LC4384V-5FTN256I |
| LC4384V-35TN176C | LC4384V-5TN176I |
| LC4384V-5FTN256C | LC4384V-75FTN256I |
| LC4384V-75FT256C | LC4384V-10FT256I |
| LC4384V-75FTN256C | LC4384V-10FTN256I |
| LC4384V-75TN176C | LC4384V-10TN176I |
| LC4512C-35FT256C | LC4512C-5FT256I |
| LC4512V-5TN176C | LC4512V-75TN176I |
| LC4512V-35FTN256C | LC4512V-5FTN256I |
| LC4512V-35TN176C | LC4512V-5TN176I |
| LC4512V-5FT256C | LC4512V-75FT256I |
| LC4512V-5FTN256C | LC4512V-75FTN256I |
| LC4512V-75FT256C | LC4512V-10FT256I |
| LC4512V-75FTN256C | LC4512V-10FTN256I |
| LC4512V-75TN176C | LC4512V-10TN176I |
Product Family ispMACH 4000ZE Family
Link to Datasheet ispMACH 4000ZE Family Data Sheet
| Commercial OPN | Industrial OPN |
| LC4032ZE-4MN64C | LC4032ZE-5MN64I |
| LC4032ZE-4TN48C | LC4032ZE-5TN48I |
| LC4032ZE-5MN64C | LC4032ZE-7MN64I |
| LC4032ZE-5TN48C | LC4032ZE-7TN48I |
| LC4064ZE-4MN144C | LC4064ZE-5MN144I |
| LC4064ZE-4MN64C | LC4064ZE-5MN64I |
| LC4064ZE-4TN100C | LC4064ZE-5TN100I |
| LC4064ZE-4UMN64C | LC4064ZE-5UMN64I |
| LC4064ZE-4TN48C | LC4064ZE-5TN48I |
| LC4064ZE-5MN144C | LC4064ZE-7MN144I |
| LC4064ZE-5MN64C | LC4064ZE-7MN64I |
| LC4064ZE-5TN100C | LC4064ZE-7TN100I |
| LC4064ZE-5UMN64C | LC4064ZE-7UMN64I |
| LC4064ZE-5TN48C | LC4064ZE-7TN48I |
| LC4128ZE-5MN144C | LC4128ZE-7MN144I |
| LC4128ZE-5TN100C | LC4128ZE-7TN100I |
| LC4128ZE-5TN144C | LC4128ZE-7TN144I |
| LC4128ZE-5UMN132C | LC4128ZE-7UMN132I |
| LC4256ZE-5MN144C | LC4256ZE-7MN144I |
| LC4256ZE-5TN100C | LC4256ZE-7TN100I |
| LC4256ZE-5TN144C | LC4256ZE-7TN144I |
Product Family LatticeXP Family
Link to Datasheet LatticeXP Family Data Sheet
| Commercial OPN | Industrial OPN |
| LFXP10C-4FN388C | LFXP10C-3FN388I |
| LFXP10C-5FN388C | LFXP10C-4FN388I |
| LFXP10E-4FN256C | LFXP10E-3FN256I |
| LFXP10E-5FN256C | LFXP10E-4FN256I |
| LFXP3C-4TN100C | LFXP3C-3TN100I |
| LFXP3C-4TN144C | LFXP3C-3TN144I |
| LFXP3C-5QN208C | LFXP3C-4QN208I |
| LFXP3C-5TN100C | LFXP3C-4TN100I |
| LFXP3E-4TN100C | LFXP3E-3TN100I |
| LFXP6C-4FN256C | LFXP6C-3FN256I |
| LFXP6C-4TN144C | LFXP6C-3TN144I |
Product Family LatticeSC
Link to
Datasheet LatticeSC/M Family Data Sheet
| Commercial OPN | Industrial OPN |
| LFSCM3GA15EP1-6F900C | LFSCM3GA15EP1-5F900I |
| LFSCM3GA15EP1-6FN900C | LFSCM3GA15EP1-5FN900I |
Related Articles
What is the definition of COD, CCO,COA and COO?
COD means Country of Diffusion and is country of Wafer Fab or Chip Country Origin (CCO). COO is Country of Origin , where product is assembled and is also Country of Assembly (COA). If you want to inquire for the specific COD of a lot number or OPN ...
