7058 - Radiant: How to modify majority of the sysConfig settings without the need of performing Place&Route and timing again?

Description:

The user can alter the sysConfig settings via bitstream generation command, this can be done using the following methods:

Note: In this example, BACKGROUND_RECONFIG was used.

Solution:

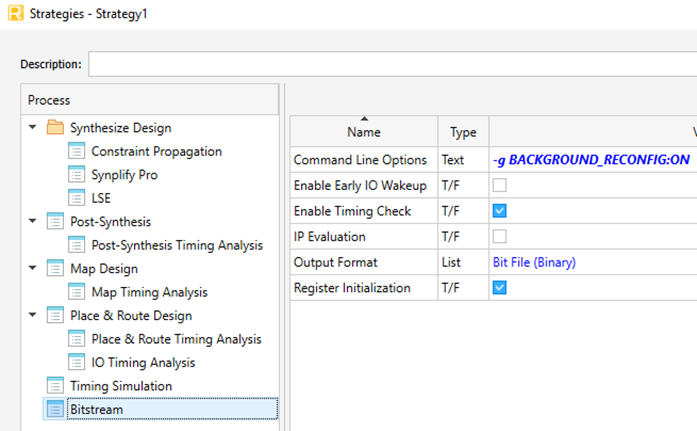

(1) Through Bitstream Strategy Settings Command Line:







(2) Through Tcl command:



bitgen -w -g BACKGROUND_RECONFIG:ON -g REGISTER_INIT:ON -s */ADC_LMN_test.secproj -gui ADC_LMN_test_impl_1.udb

Note: The valid -g BACKGROUD_RECONFIG values are "OFF", "ON", "SRAM_EBR", "SRAM_ONLY".

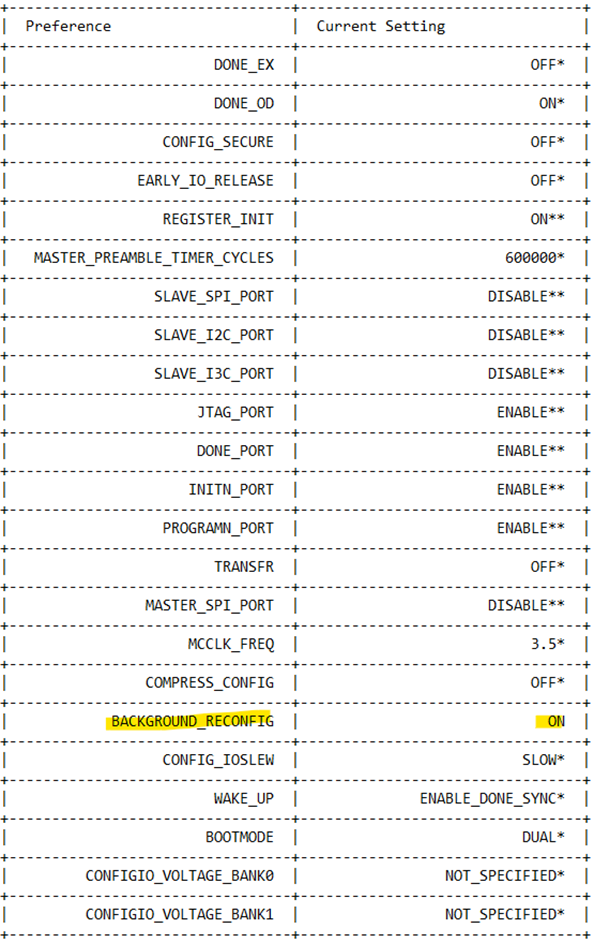

From the *.bgn file, it is validated that the BACKGROUND_RECONFIG value is changed to "ON" in the bitstream.
