7403 - Radiant: How to further check the paths/connections in the design that are not covered by constraints?
To look into unconstrained connections from the design, use -dump_uncovered on the Place & Route Timing Analysis Strategy Settings, As shown below:
The -dump_uncovered command creates a log file in the design directory named UncoveredConn.log this provides connections in the design that may need to be constrained to increase timing coverage. Since these are connections, users may want to consider tracing the cells/registers these objects are connected to, to define the proper constraint since it is desired to define a constraint on a valid timing path (Reg to Reg, Reg to Port, Port to Reg, Port to Port).

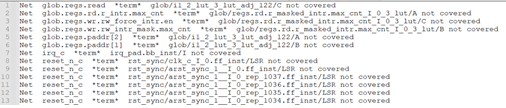

Below is an example of the contents of the log file.
