7006 - Radiant 2023.1 and above: How to get an IP on the IP Server on a PC without an internet connection?

In a PC with internet access, please install the latest Radiant version. By using the latest version of Radiant, user can download and save any IP on the IP Server locally then manually transfer it to the other machine without internet and install the IP.

Here are the steps:

1. On user's PC with Radiant and Internet: Open Radiant then open a design

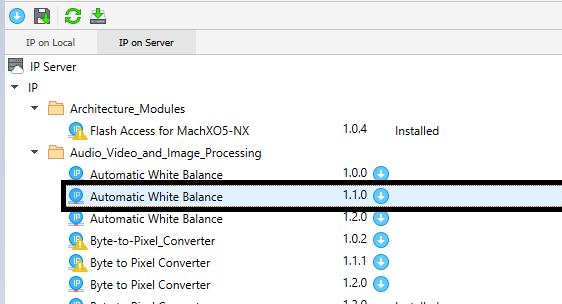

2. Go to IP Catalog > IP Server and click on the IP that the user wants to download and save.

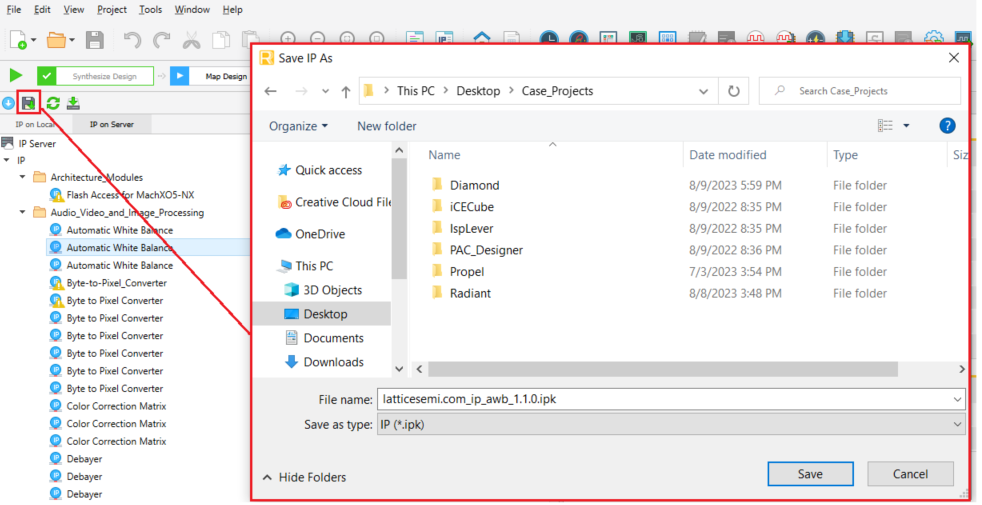

3. Click the Download and save icon to get a copy of the IP locally in *.ipk format.

Note: Do not change the name of the file as it could cause unusual errors.

4. Once the *.ipk file has been downloaded, user can then transfer the file through external storage to the Machine with no internet.

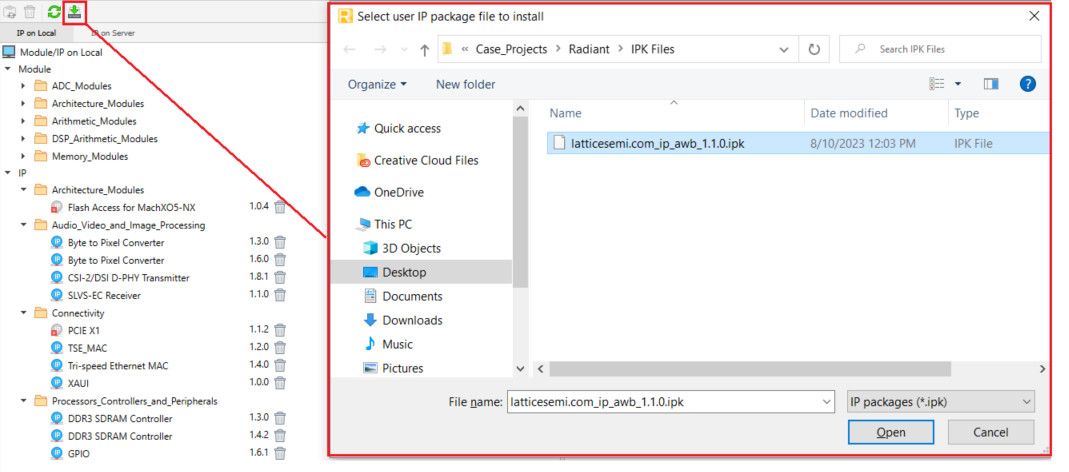

5. To install the IP on Radiant, click the Install icon and locate the *.ipk file:



6. Once installed, the user should be able to see the IP on the "IP" dropdown.

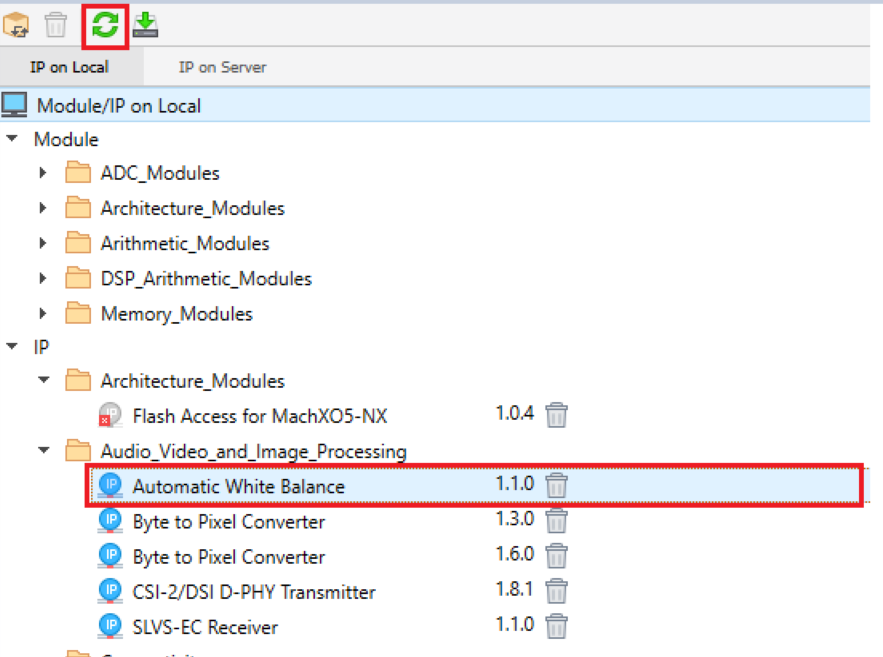

If the IP does not appear, try clicking the refresh button.
