Locating and Exporting Pin Package Lengths or Delay file (Trace_Length & Package_Delay)

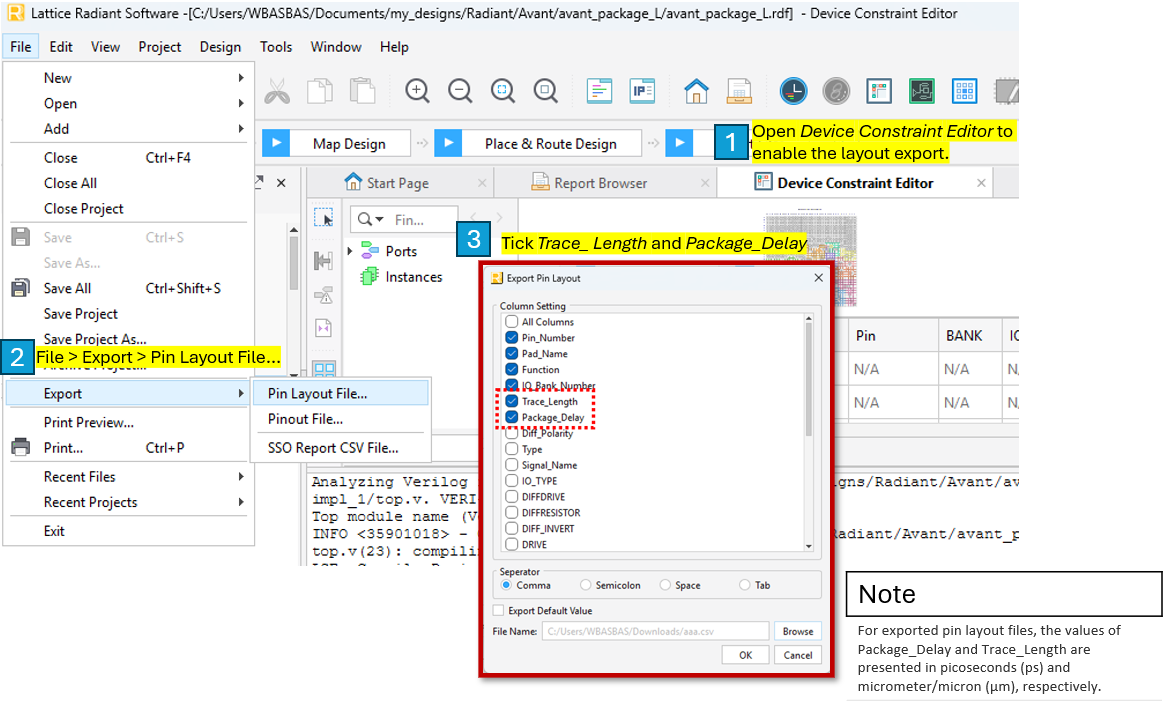

Export the Pin Package Trace Lengths and Delay Files using Lattice Radiant
Devices Covered: iCE40UP, Nexus, Nexus 2, Avant, MachXO4/XO4D

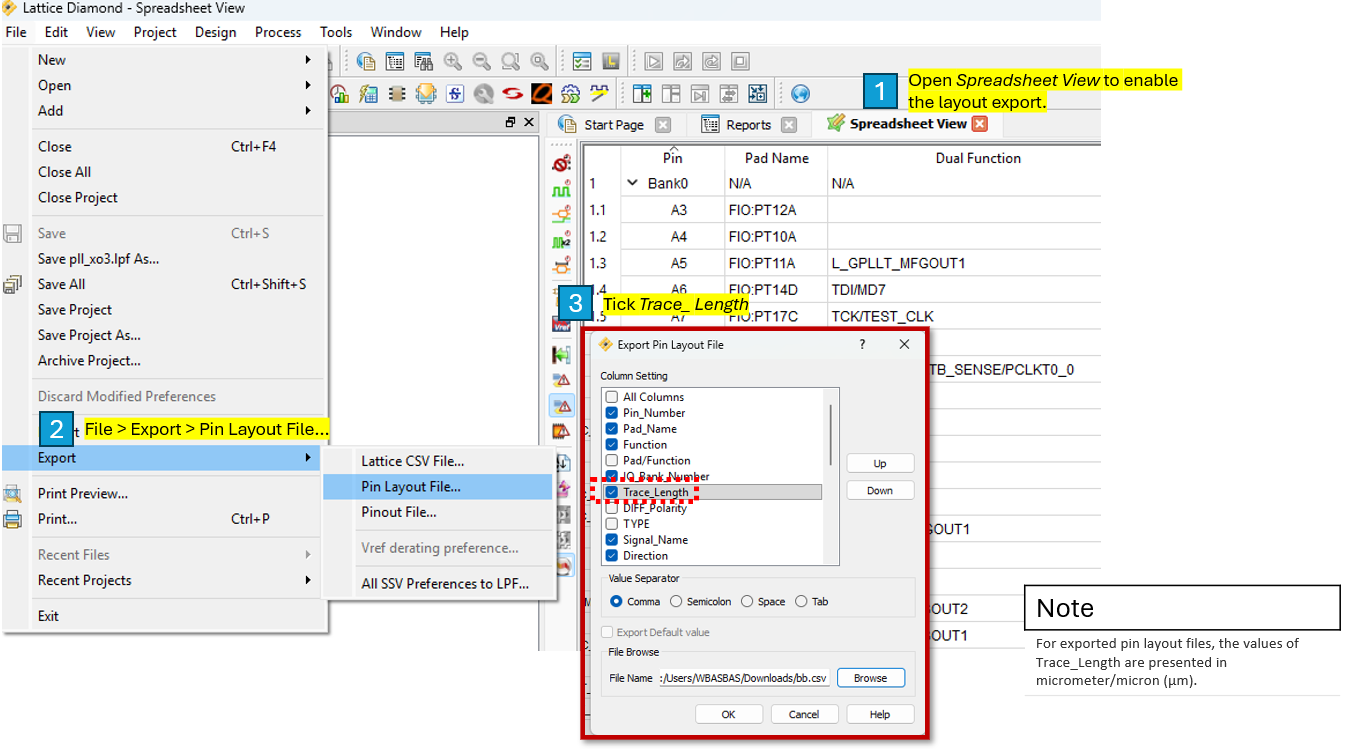

Export the Pin Package Trace Lengths File using Lattice Diamond
Devices Covered: MachXO/XO2/XO3/XO3D, CrossLink, ECP2/3/5.
