7243 - Lattice Radiant: Why do users cannot select the CFG2 address for Dual-boot implementation in MachXO5-NX using Deployment Tool versions 2023.1, 2023.1SP1 and 2023.2?

Description:

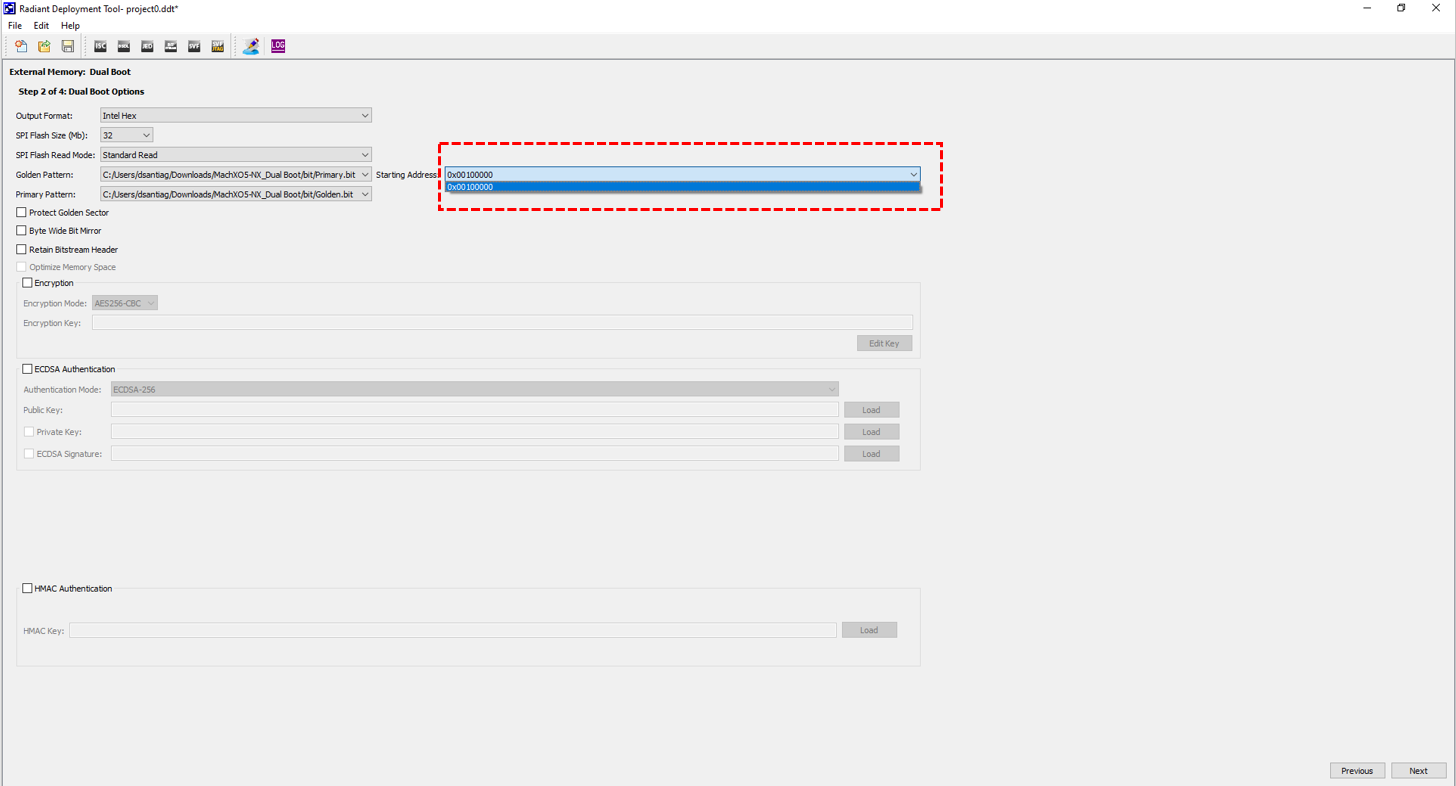

The users will not be able to select CFG2 as the starting address of the Golden Image in Deployment tool, The user may encounter a GUI Issue as shown.

Solution:

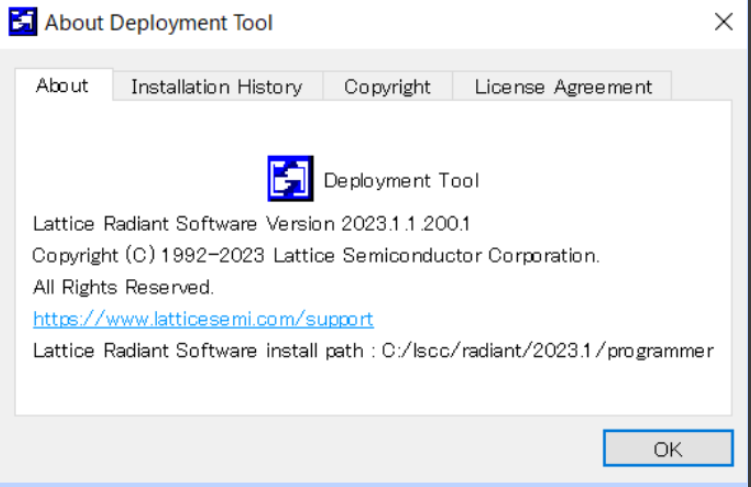

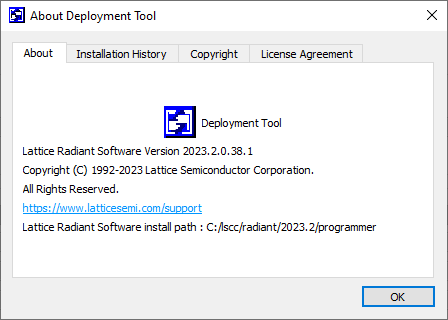

This is a known issue and the versions affected are shown below.

Notes:

1.) The issue will be fixed in version 2024.1.

2.) If the user wants to be able to select the CFG2 as the starting image for the golden image in Dual-boot using the affected versions mentioned above, it is recommended to file for a patch request accordingly to version you are using.

3.) As a quick workaround, the user can also use the Deployment tool 2022.1SP1 which allows the user to select the CFG2 as the starting address for the golden image and then generate the Dual-boot image.
