6819 - Lattice Diamond: How do i generate the pin layout files in Diamond?
You can generate the pinout file for the desired device through the diamond SW. Please follow the steps below:

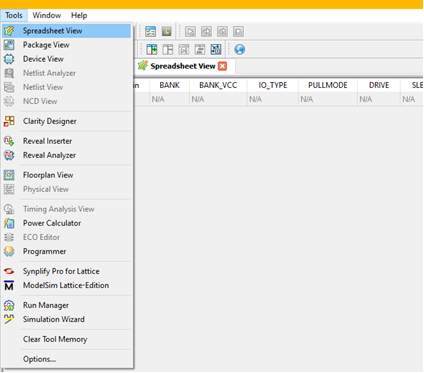

1) Open Spread Sheet View

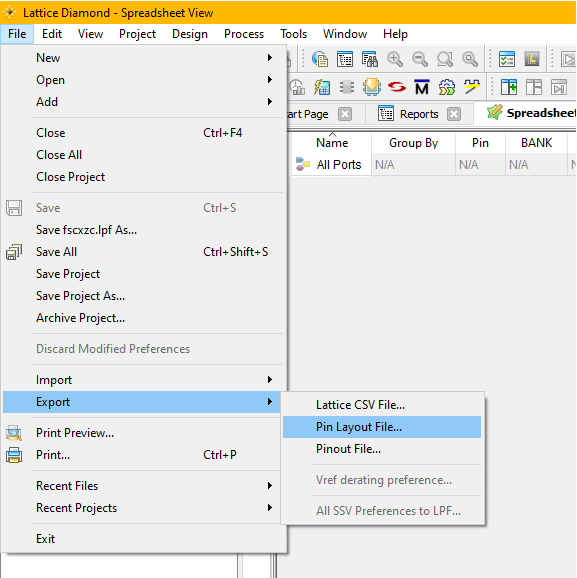

2) Once Opened, Export the Pin Layout file through “File”, as Shown below:

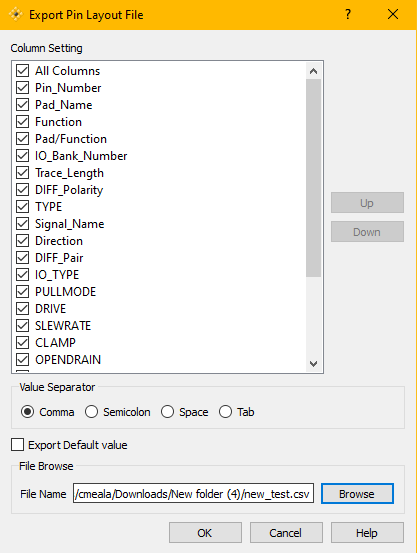

3) Select the details that you will be needed, and Browse the directory you want to save the file. Then Click Okay
