Description: See the following steps to set the TCK Low Width Delay to >10x: 1. Program a device with the Reveal core 2. Create a .rva file 3. Edit the .rva file in a text editor. Change the following line:
Description: When running the reveal analyzer a "Core0 incorrect pattern readout" error is encountered causing the tool to not generate its desired waveforms. Solution: This can be resolved by making sure that you have the following: 1) JTAG TCK is ...

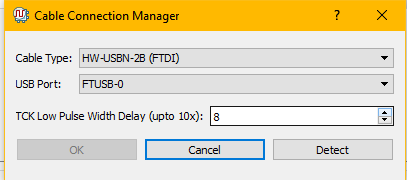

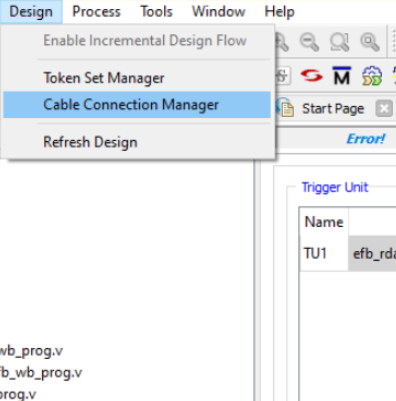

First, try to adjust the TCK Low pulse width delay to a certain value (usually between 5 and 10). This can be done in the �Design > Cable Connection Manager� settings. If above suggestion does not solve the error, verify the following items: (1) ...
Reveal Analyzer Wizard launched by clicking on Reveal Analyzer button creates a new .rva file only if there is no .rva file in your Lattice Diamond project directory. You cannot create a new Reveal Analyzer file with Reveal Analyzer Wizard with ...
A Value Change Dump (VCD) file is an ASCII file that describes the state transitions of digital logic. A VCD file can be written by logic simulation tools. Power estimation performed using a VCD file is an improvement over guessing an operating ...
