7747 - Avant: DDR Memory Controller Revision and Migration Guide

Description:

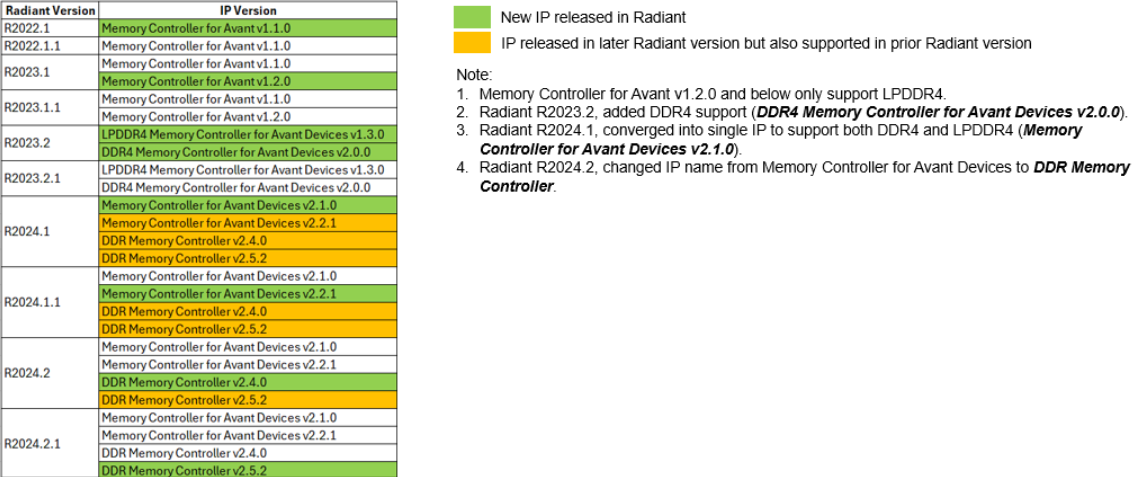

This table is to provide guidelines to help customers select the appropriate Memory Controller IP for Avant devices in accordance to the supported Memory Controller IP version in Radiant Software Tools.

1. User may choose to continue to use supported prior released Memory Controller if supported in the particular Radiant version

2. User is required to re-instantiate the IP if choose to migrate to the latest IP in the design
