7571 - Diamond FIR IP: ERROR - logical block <> with type <> is unexpanded.
Description:
When the user generates the FIR IP in Diamond, an error may occur during translate design.
Solution:
There is currently no fix for this. However, please see the following steps for a workaround:

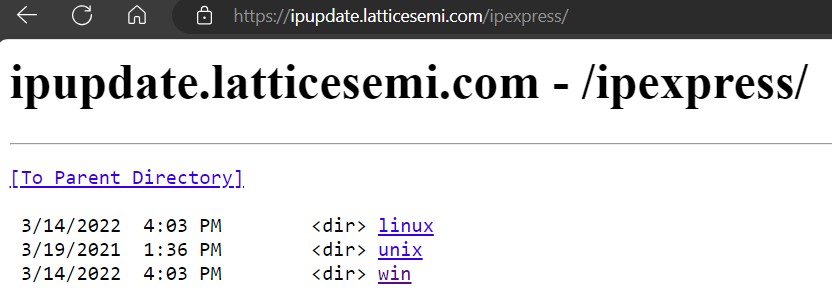

1. Go to https://ipupdate.latticesemi.com/ipexpress/ and choose your OS

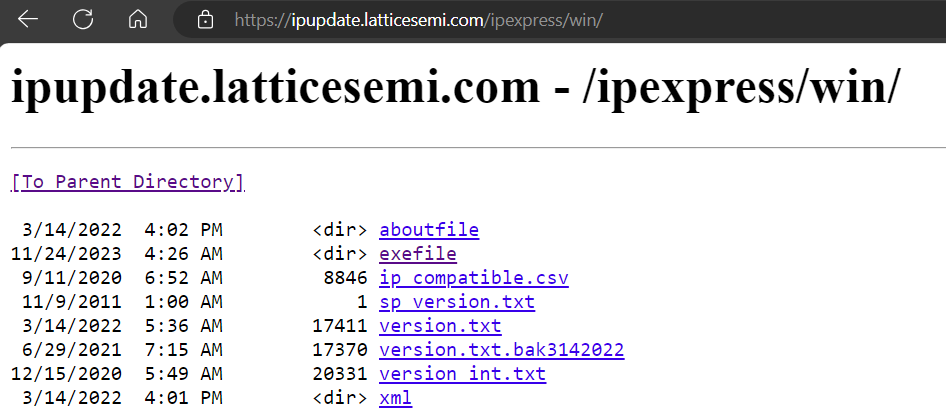

2. Choose exefile

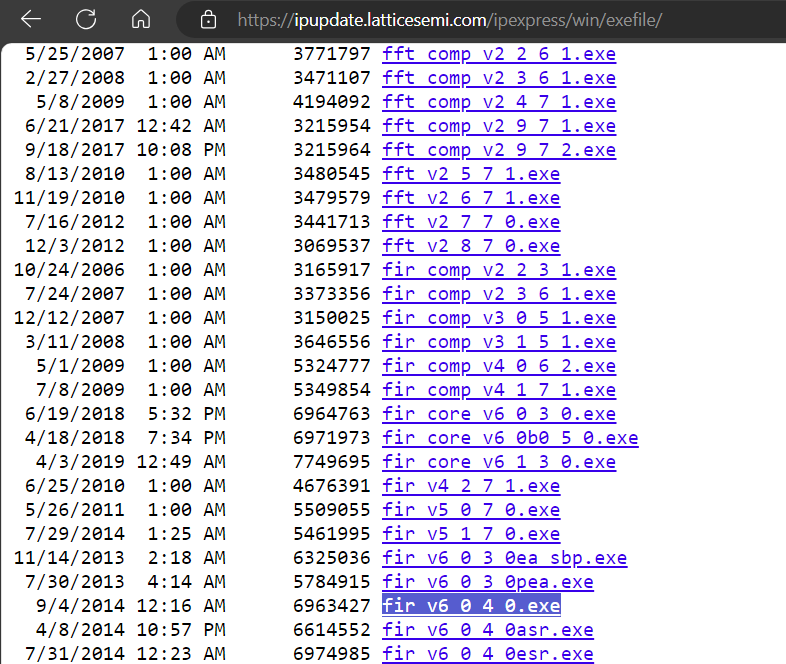

3. Choose fir_v6_0_4_0.exe and download the executable
4. Open the executable and proceed with reinstalling the FIR. This will replace the existing FIR installed in the LatticeCore folder.
5. Reconfigure and regenerate the IP in Clarity Designer.
6. Rerun until Translate Design.
7. If you encounter any license issues during Bitstream Generation, please file a technical support ticket to request additional licenses. For example, if you are using ECP5, then the license error requires you to have e4u.
