7223 - Radiant 2023.2 SP1: Why does Lattice PCIe X4 IP v2.3.1 ModelSim simulation using Radiant 2023.2 SP1 show an error "Fatal: (vsim-3381) Obsolete library format for design unit. Design unit ../RadiantIPLocal/latticesemi.com_ip_pcie_x4_2.3.1/testbench/
Description:
This is a bug in Radiant 2023.2 SP1
Solution:
The obsolete library format error can be resolved by following the steps below.

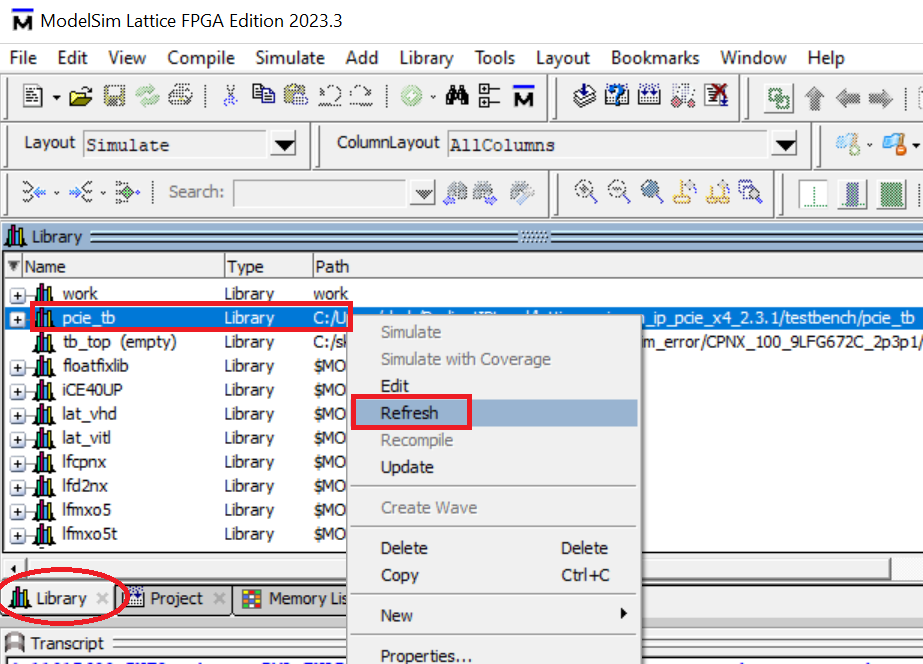

1) In the ModelSim environment, on the left-hand window (Library pane)
2) Right-click the library specified on the error message, in this case it is 'pcie_tb', choose the 'Refresh' option. This will start the library refresh process.
3) After that go back to run the file_name.mdo
