7189 - CertusPro-NX/PCI Express: What is the AHB slave interface Endianness completion format for PCIe x4?
Description:

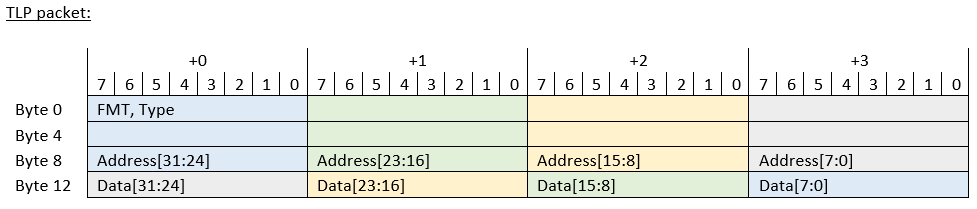

- Bytes 8-11 here illustrate Memory TLP, which contains Address field. It could be other fields, depending on the TLP type.
- Bytes 12-15 here show the payload field for 3-DW header TLP. It could be a 4th-DW header field, or it does not exist (e.g. a 3-DW Memory Read TLP). If it is a 4th-DW header field, it should follow header (e.g. bytes 8-11) endianness.
Related Articles
7078 - CertusPro-NX/PCI Express: Why would the host PC crash when running the PCIe DMA Throughput Demo of CertusPro-NX?
Description: The following operation will causes the host PC to crash. - Run Batch Test with Write Operation checked. Solution: Please use the 'Throughput Test' tab instead of the 'Batch Test' tab as it will causes the GUI to crash. Please unselect ...6447 - CertusPro-NX PCIe: Does both Quad 0 and Quad 1 support hard IP block of PCIe link layer?
CertusPro-NX only supports the hard IP block PCIe link layer on Quad 0. For more information, refer to second paragraph of section '11.1. PCI Express Mode' on FPGA-TN-02245.6236 - PCIe for Nexus FPGAs: What is the total amount of PCIe interfaces in CertusPro-NX-100 with different lanes?
The PCI Express Link Layer Quad for all CertusPro-NX devices has four PIPE interfaces that can be used in different number of links. This can provide the maximum flexibility, depending on the bandwidth of the application requirements. The PCIe link ...1061 - Lattice All FPGAs: Which device is the minimal device needed to support PCI Express x1 and x4 core?
The PCI Express x1 and x4 IP Core is supported by both SC and ECP2 device families. The minimal ECP2M device needed to support the core is LFE2M-20E-6F484C, and the minimal SC device needed is LFSC3GA15E-6F900C. Newer Lattice FPGA families that ...6215 - Certus Pro-NX: Does Lattice CertusPro-NX supports PCIe via PIPE + Soft PCIELL?
Solution: No, the CertusPro-NX only supports PCIe via PIPE + Hard PCIELL.
