7039 - Radiant Deployment Tool: How to update CFG/UFM section with Embedded Programming using Radiant Deployment Tool?

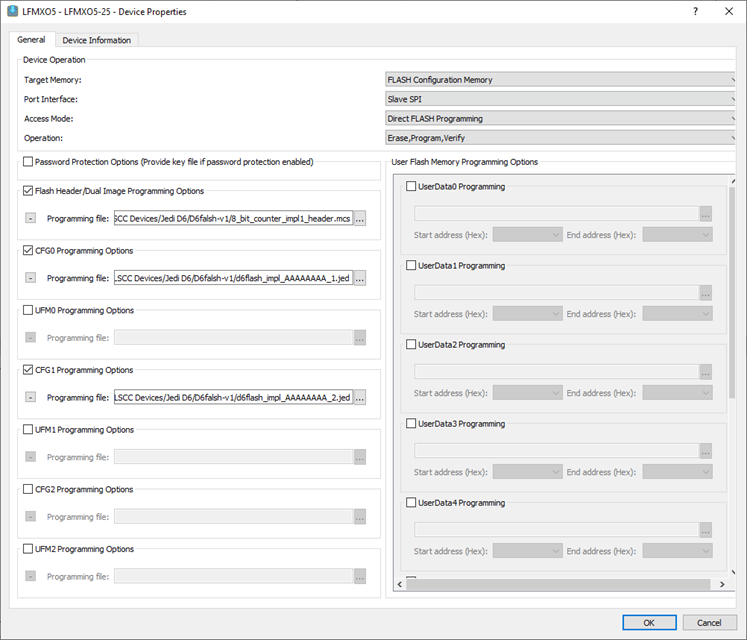

1. User should set up everything in Radiant Programmer and save to a .xcf file. User can choose which CFG or UFM area to store the primary or secondary image.

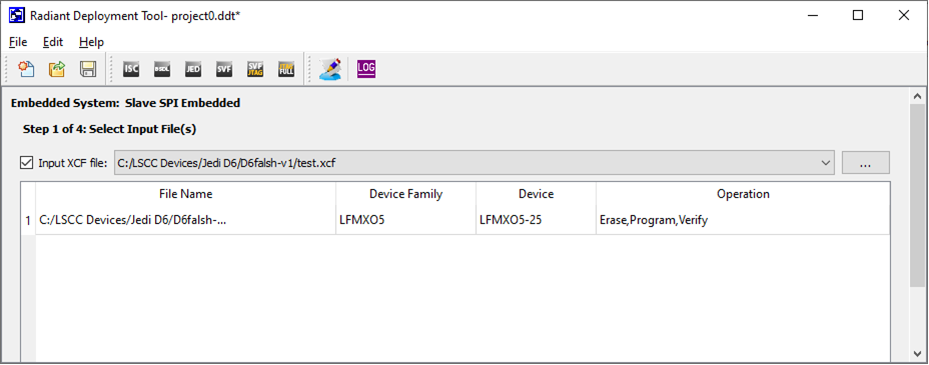

2. Next, launch Radiant Deployment Tool. Select the desired Embedded Programming method and the choose .xcf file as the input. It will include the CFG/UFM parameter save in the .xcf file.
