6938 - How to avoid the resource get optimized  during Synthesis?

This is due to the optimization in the design during MAP.

To avoid optimization during MAP, use syn_hier in the block level (submodules) and syn_keep + NOCLIP to the instance component at the top level file.

Example:

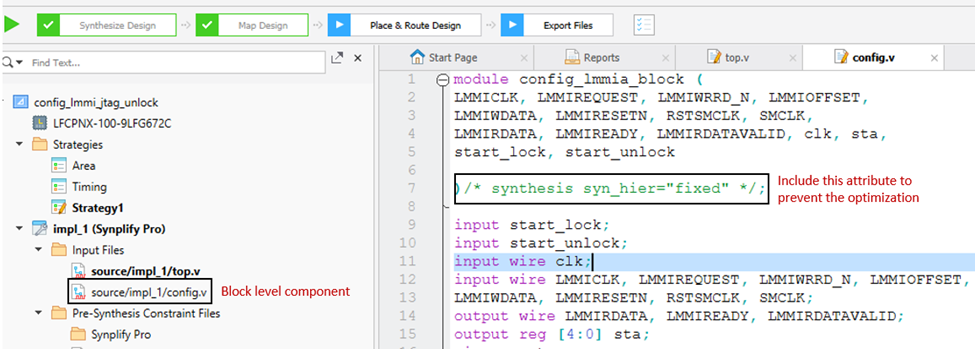

1. Insert the attribute /* synthesis syn_hier="fixed" */ to the block level file (submodule).

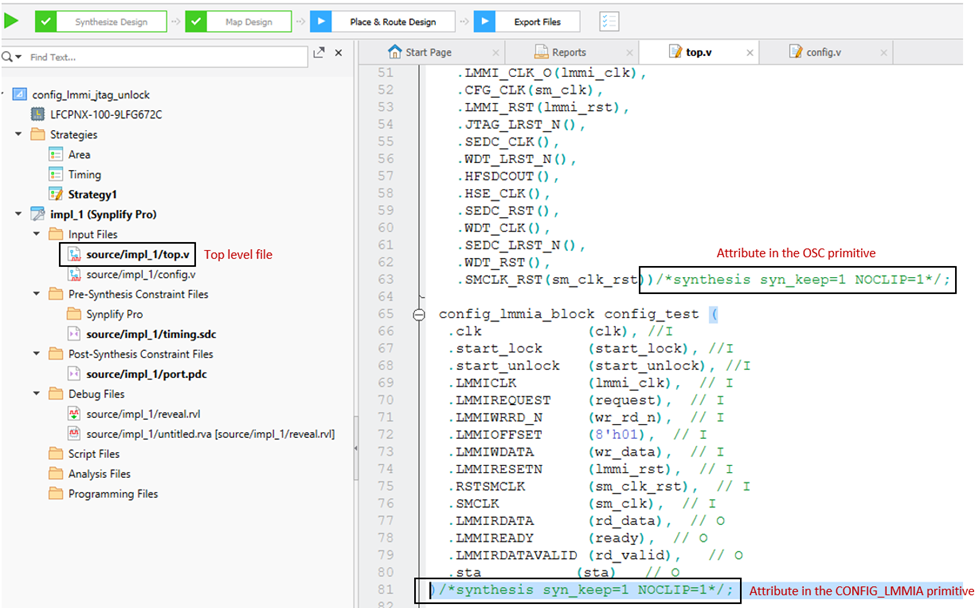

2. Include /*synthesis syn_keep=1 NOCLIP=1 */ to the primitive instance inside the top level file.

Doing this you should able to avoid the resource get optimized and it will shows in the MAP report.

For more details, please refer to Radiant Software Help Files.
