6858 - MachXO Family: How to make your own Schematic Symbol in Diamond?

See below steps as an example:

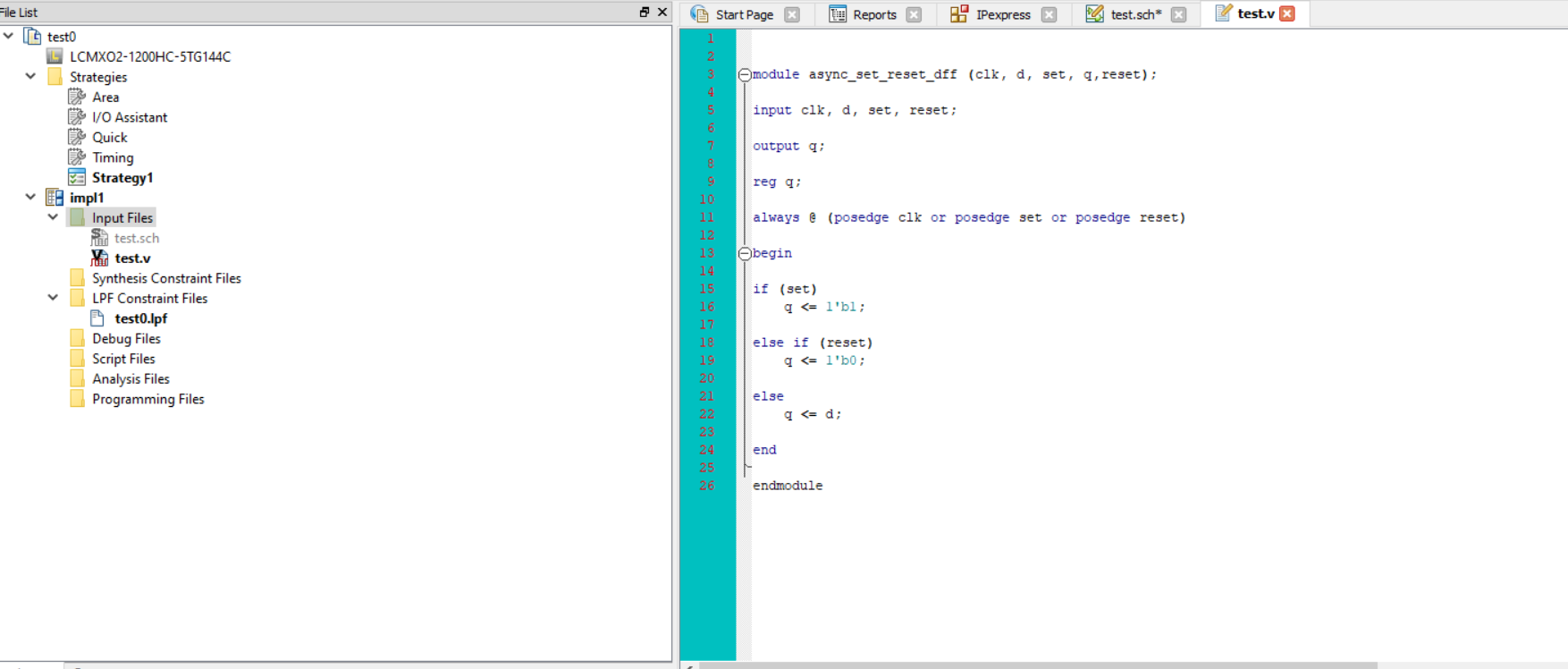

1) Code the logic of your Asynchronous Set and Reset on to a .v file (Note: make sure your .sch is excluded first in the implementation as shown)

2) Save the design and Run the Flow (Running the flow is optional, only need to produce unit of your design in the Hierachy)

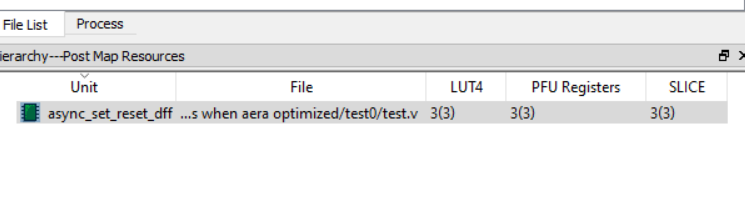

3) Right click on the unit then select 'Generate Schematic Symbol'

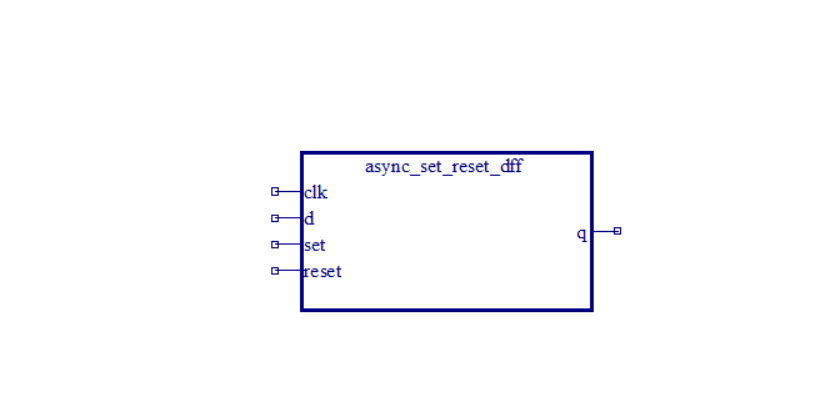

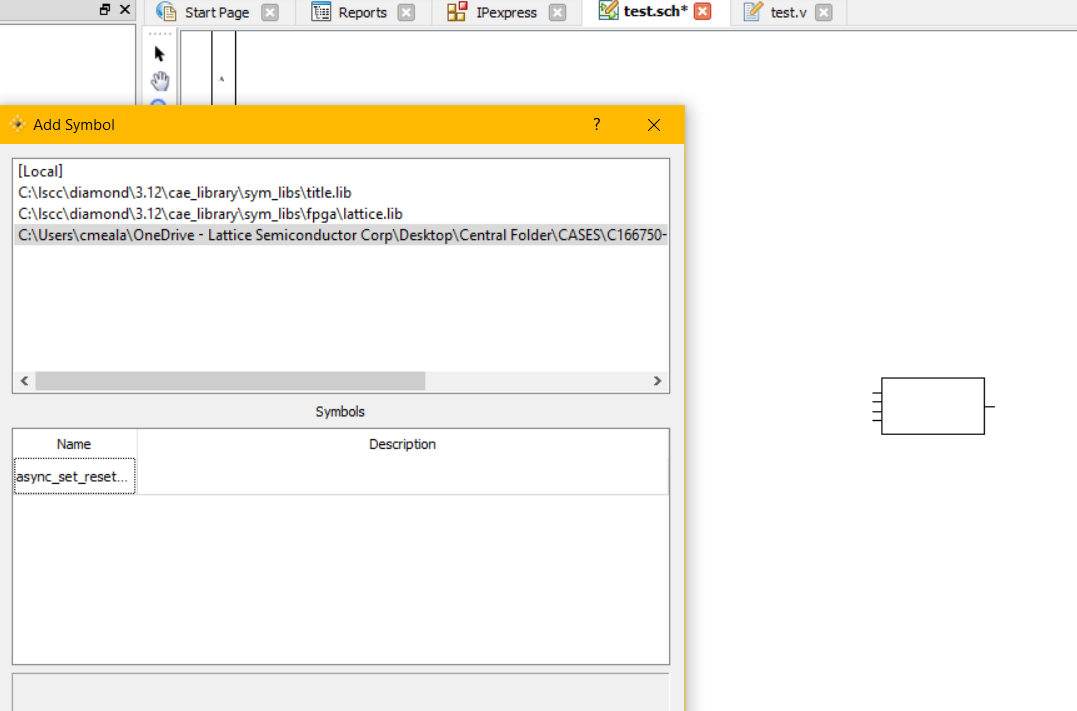

4) If you check the .sch file, You can now add a symbol generated from your design
