6769 - MPCS IP: Why does the settings written to the PMA registers does not reflect to the actual signal?

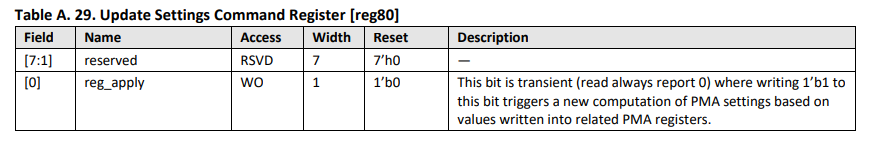

To update any PMA settings in the device, the REG80 need to be set.
Once written to 1, check if the signals are updated.
Related Articles
6977 - [CertusPro-NX] Serdes/PCS: Why does the MPCS-8b10b IP fails in x8 lane simulation?
Solution: The issue has been fixed in Radiant 2023.2 (MPCS IP version 1.4.2 or later).DisplayPort TX IP Version 2.1.0 does not support back-to-back video input without blanking interval
Description DisplayPort TX IP version 2.1.0 requires the video input to provide blanking interval between active horizontal video lines to ensure correct video data packing. Failure symptoms include no video image output or black screen, even though ...7022 - CertusPro-NX/MPCS: Does the MPCS IP GUI for CertusPro-NX has a way to validate if the FVCO (VCO frequency) is within the SerDes specification limit?
Solution: The MPCS IP has an update that added the FVCO checker. It is available on Radiant 2023.2 or later. In case the user cannot upgrade to the said version, kindly file techsupport ticket to have an appropriate software patch. ...6466 - MPCS IP: Can the equalization algorithm of the MPCS IP module be selected through the LMMI dynamically?
This can be done dynamically using LMMI (Lattice Memory Mapped Interface). The user just has to write the register address value (‘d217) to the lmmi_offset_i (address/offset) to access that PMA register. The needed information are shown below: ...7192 - PCIe for Nexus FPGAs: Why do PCIe Configuration Space registers (i.e. Device ID, Vendor ID, etc) not persist after first enumeration?
Description: The PCIe IP v1.1 contains a bug in which the Device ID and Vendor ID values in the GUI do not reflect in the configuration space. Solution: As a workaround, users could configure the IDs in respective registers. This is done through the ...
