3719 - Programmer: How do we know the expected Device ID of the FPGA using the Diamond or Radiant Programmer?

In the Diamond or Radiant Programmer window, from the View menu -> select Columns -> select Device ID

This will enable the Device ID column in the main Programmer window.

Example: Diamond Programmer

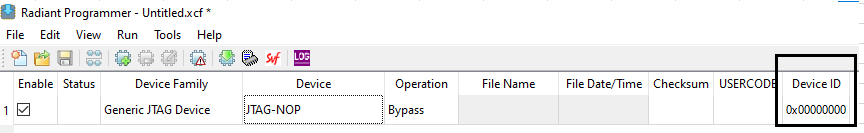

Example: Radiant Programmer
