1667 - Lattice Power Calculator / MachXO2: Why does the blank MachXO2 device in <b>Power Calculator</b> shows dynamic power?

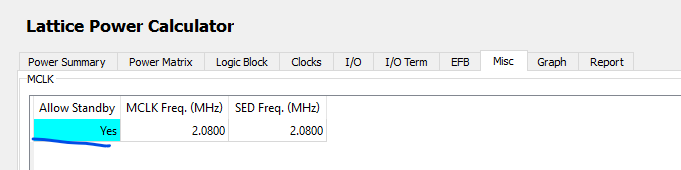

In MachXO2's case, the internal oscillator is always on which adds the dynamic power power to the device. The Misc tab lists the internal clocks that are running for the blank part. The internal oscillator is needed for configuration and thus it cannot be turned off. If you want to remove the dynamic power in the GUI, you must set the MCLK standby mode to YES, and turn off the osc.

• Related Articles

• 1456 - Power Calculator: How can the user load a Value Change Dump (VCD) file into Power Calculator?

  A Value Change Dump (VCD) file is an ASCII file that describes the state transitions of digital logic. A VCD file can be written by logic simulation tools. Power estimation performed using a VCD file is an improvement over guessing an operating ...

• 1461 - Diamond / Power Calculator: How do users include the heat sink information for power calculation in Lattice Diamond?

  To include the heat sink information in the power calculations, invoke the Power Calculator tool. Then click on the Thermal Profile button and select the Use Thermal Models radio button. If the user know the approximate Theta-JA, select the User ...

• Lattice Radiant Power Calculator: Why does VCCECLK rail not present on Radiant Power Calculator?

  The VCCECLK has same power supply as VCC. The power of VCCECLK of the device is reported into the VCC power.

• 1727 - Lattice Power Calculator: What is VCD file format for Power Calculator?

  The VCD (Value Change Dump) file format is specified in the IEEE Std. 1364-1995 standard. The VCD file is an ASCII containing header informaiton, variable definitions, and variable value changes. The VCD file is optionally imported into the Power ...

• Lattice Diamond: Why do i experience an Unexpected high power consumption in Lattice Diamond Power Calculator and even the number of Logic Block registers are reduced?

  Description: In Lattice Diamond Power calculator, users may encounter a strange high power consumption on the power calculator. Solution: This is a known issue for the Power Calculator Logic Block. Request for patch 131367 to the Lattice Technical ...
